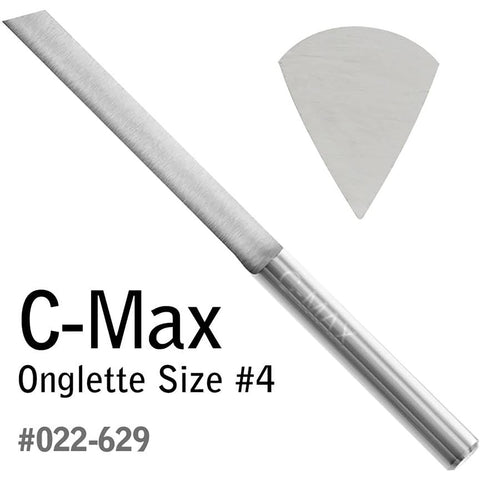

GRS C-Max #4 Onglette Carbide Graver – 2.4 mm
The GRS C-Max #4 Onglette Carbide Graver is a precision, pre-shaped tungsten carbide engraving tool designed for hand engraving, jewelry engraving, stone setting, inlay work, border cutting, and variable-width line engraving. With a 2.4 mm #4 Onglette profile, this graver provides a versatile pointed cutting geometry for both decorative and precision metalworking applications.
The C-Max Onglette features angled sides that taper toward a pointed cutting edge, allowing the engraver to create controlled lines and varying widths by changing the angle and position of the tool. Its factory-shaped profile saves preparation time compared with creating an Onglette from a blank.
Manufactured from special tungsten carbide, C-Max gravers are designed to provide a balance of hardness and toughness for demanding hand engraving and stone-setting applications.
Features & Benefits
- GRS C-Max #4 Onglette: Professional carbide graver designed for precision engraving and stone setting.
- 2.4 mm Tool Point Width: A versatile #4 size for medium-detail engraving and metalworking.
- Pre-Shaped Onglette Profile: Saves time by eliminating the need to grind the basic Onglette shape from a blank.
- Pointed Cutting Edge: Produces controlled lines, borders, decorative details, and precision cuts.
- Variable Line Widths: Change the tool angle to create different line widths and cutting effects.
- Tungsten Carbide Construction: C-Max carbide provides a carefully balanced combination of hardness and toughness.
- Excellent for Stone Setting: Useful for precision cutting and cleanup during stone-setting work.
- Ideal for Inlay Work: Designed for cutting channels and other detailed inlay applications.
- Rounded Top: Provides a comfortable surface for controlled hand use.
- 1/8-Inch Round Shank: Designed for the GRS QC Tool Holder for 1/8-inch Round Tools.
- Alignment Flats: Two flat areas on the shank help orient the graver consistently in a GRS QC Tool Holder.
Applications
The GRS C-Max #4 Onglette Graver is ideal for:
- Hand engraving
- Jewelry engraving
- Stone setting
- Border cutting
- Inlay work
- Fine-line engraving
- Variable-width line engraving
- Decorative engraving
- Ornamental metalwork
- Precision metal cutting
- Precious-metal work
What Is an Onglette Graver?
An Onglette graver has angled sides that taper toward a narrow, pointed cutting edge. This distinctive geometry makes it especially useful when an engraver needs to create flowing lines, borders, inlay channels, and cuts with varying widths.
The GRS C-Max Onglette combines this versatile profile with a specialized tungsten carbide material developed for hand engraving and stone-setting applications.
C-Max Carbide Performance
GRS developed C-Max carbide to provide engravers and stone setters with a tool material that balances hardness and toughness. The result is a precision carbide graver designed to maintain a fine cutting edge while providing the durability required for demanding professional work.
The C-Max Onglette series is available in multiple sizes, allowing engravers to select the tool-point width that best matches the desired cut and level of detail. The #4 / 2.4 mm size offers a useful option for medium-width engraving and detailed stone-setting work.
QC Tool Holder Compatibility
The #4 C-Max Onglette has a 1/8-inch (3.175 mm) round shank with two flat alignment areas. These flats allow the set screws in a GRS QC Tool Holder to orient and secure the graver consistently.
Use with the GRS QC Tool Holder for 1/8-Inch Round Tools #004-873.
Key Specifications
- Brand: GRS
- Series: C-Max
- Tool Type: Onglette Carbide Graver
- Graver Size: #4
- Tool Point Width: 2.4 mm
- Profile: Onglette
- Shank Diameter: 1/8 inch (3.175 mm)
- Overall Length: 1.8 inches (45.72 mm)
- Material: Special Tungsten Carbide
- Geometry: Pre-Shaped Onglette
- Shank Features: Two flat alignment areas
- Compatible Tool Holder: GRS QC Tool Holder for 1/8-Inch Round Tools #004-873
- SKU: 022-629
- MPN: 022-629
- UPC: 196943901242
- Made In: United States
Frequently Asked Questions
What is the GRS C-Max #4 Onglette used for?
The #4 C-Max Onglette is designed for border cutting, inlay work, variable-width lines, line engraving, and stone setting. It can also be used for general jewelry and metal engraving.
What size is the #4 C-Max Onglette?
The #4 has a 2.4 mm tool-point width. The complete graver is approximately 1.8 inches (45.72 mm) long with a 1/8-inch (3.175 mm) round shank.
Is the GRS C-Max #4 Onglette carbide?
Yes. It is manufactured from special tungsten carbide as part of the GRS C-Max graver series.
Is the #4 Onglette pre-shaped?
Yes. The C-Max Onglette is supplied pre-shaped with the tool-point geometry, saving the initial grinding step required when starting with a blank.
What tool holder does it use?
Use the GRS QC Tool Holder for 1/8-Inch Round Tools #004-873. The flats on the graver's shank help provide consistent orientation in the holder.
What is the difference between an Onglette and other graver profiles?
An Onglette has angled sides that taper toward a pointed cutting edge. This makes it particularly useful for borders, inlay work, variable-width cuts, line engraving, and stone setting, where a pointed and controllable cutting profile is beneficial.
| SKU: | 022-629 |
| UPC: | 196943901242 |
| BRAND: | GRS |
| MPN: | 022-629 |
| Made In: | United States |
