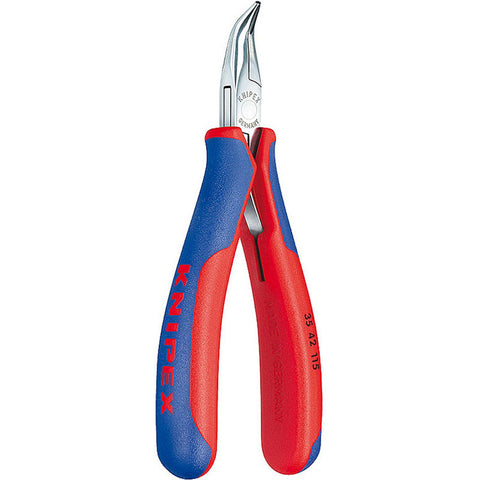

Knipex 4½" Precision Bent Nose Electronics Pliers – 45° Smooth Jaws, Comfort Grip – 35-42-115
Work with small, delicate components more precisely using these 4½" precision bent nose electronics pliers from Knipex. Designed for fine assembly, electronics repair, and precision mechanical work, these compact pliers feature 45° angled, half-round jaws that provide improved access to components in tight or difficult-to-reach areas.
The smooth-ground gripping surfaces allow delicate parts to be held, positioned, and bent without the marks commonly left by serrated jaws. Carefully rounded edges further help protect sensitive components and surrounding materials during detailed work.
A precision box joint provides exceptional stability and accurate jaw alignment. Its backlash-free design minimizes unwanted side-to-side movement, giving you greater control when handling miniature components, fine wires, and small mechanical parts.
The integrated low-friction double spring provides smooth, even opening after each grip. This reduces the effort required during repetitive tasks and makes the pliers especially comfortable for detailed assembly and repair work.
Multi-component handles provide a secure, comfortable grip, allowing controlled pressure when working with delicate materials. At just 115 mm (4½") long, the pliers are compact enough for precision work while offering excellent handling and control.
Manufactured in Germany from oil-hardened ball bearing chrome steel, these pliers feature a mirror-polished head that provides corrosion protection when maintained with a light film of oil. Unlike chrome-plated tools, the polished finish eliminates the risk of peeling chrome particles contaminating sensitive electronic assemblies.
Whether you're positioning components on a circuit board, manipulating fine wires, or assembling miniature mechanical parts, these Knipex precision pliers deliver the control, accuracy, and durability required for demanding technical work.
Features & Benefits
-
45° Bent Nose Design: Angled jaws provide improved access to recessed components and confined spaces.
-
Half-Round Jaws: Combine precise gripping capability with a slim profile for delicate work.
-
Smooth Gripping Surfaces: Help prevent scratches, indentations, and damage to sensitive materials.
-
Carefully Rounded Edges: Reduce the risk of damaging adjacent components during handling.
-
Precision Box Joint: Provides excellent jaw alignment, stability, and backlash-free operation.
-
Low-Friction Double Spring: Ensures smooth, even opening with reduced hand effort.
-
Multi-Component Handles: Offer comfortable, secure handling during detailed work.
-
Compact 4½" Length: Ideal for precision applications where larger pliers are difficult to maneuver.
-
Oil-Hardened Ball Bearing Chrome Steel: Provides strength, durability, and reliable performance.
-
Mirror-Polished Head: Helps resist corrosion without a chrome-plated surface that could flake.
-
Slim Head Profile: Allows access to closely spaced components and restricted work areas.
-
German Manufacturing: Precision-engineered and manufactured in Germany.
Specifications
-
Brand: Knipex
-
Manufacturer Part Number: 35 42 115
-
SKU: 35-42-115
-
Product Type: Precision Electronics Gripping Pliers
-
Overall Length: 4½" (115 mm)
-
Jaw Style: 45° Bent, Half-Round
-
Jaw Angle: 45°
-
Gripping Surface: Smooth Ground
-
Jaw Length: 22.5 mm (0.89")
-
Tip Width: 2.0 mm (0.079")
-
Tip Thickness: 1.5 mm (0.059")
-
Head Width: 11.0 mm (0.43")
-
Jaw Thickness at Joint: 6.5 mm (0.26")
-
Material: Ball Bearing Chrome Steel
-
Hardening: Oil-Hardened
-
Head Finish: Mirror Polished
-
Joint Type: Precision Box Joint
-
Opening Mechanism: Low-Friction Double Spring
-
Handle Type: Multi-Component
-
Overall Dimensions: 115 × 67 × 17 mm
-
Weight: Approximately 70 g (2.5 oz)
-
Standard: DIN ISO 9655
-
ESD-Safe: No — Standard Multi-Component Handles
-
Electrically Insulated: No
-
Cutting Edges: None
-
Country of Origin: Germany
-
Package Quantity: 1 Pair of Pliers
Ideal For
-
Electronics assembly and repair
-
Printed circuit board (PCB) work
-
Gripping and positioning miniature components
-
Fine wire bending and manipulation
-
Precision mechanical assembly
-
Instrument and measuring equipment repair
-
Watchmaking and jewelry repair
-
Model building and miniature assembly
-
Accessing recessed or concealed components
-
Working in confined spaces
-
Handling delicate electrical connections
-
General precision maintenance
45° Bent Nose for Improved Access
The angled jaw design is particularly useful when working in areas where straight pliers cannot easily reach.
With the tips bent at 45°, you can approach components from an angle while keeping the handles clear of nearby parts and obstructions.
This provides greater freedom of movement when working on crowded circuit boards, inside compact electronic assemblies, or around delicate mechanical components.
The slim, half-round jaws offer precise contact with small parts while minimizing interference with surrounding materials.
Smooth Jaws Protect Delicate Components
Unlike serrated gripping surfaces, the smooth-ground jaws are designed to hold components without leaving tooth marks.
This makes them especially useful for handling fine wires, small electrical parts, miniature mechanical components, and delicate finished surfaces.
The carefully rounded head edges further reduce the chance of scratching or damaging nearby materials.
These features make the pliers well suited to precision work where surface protection is important.
Precision Box Joint for Accurate Control
The box joint provides stable, accurate movement by supporting the inner handle on both sides.
This construction minimizes sideways movement and helps maintain consistent jaw alignment during gripping and bending.
The backlash-free mechanism provides a controlled feel, allowing small components to be handled with confidence.
The sturdy joint construction also contributes to long-term durability during regular precision work.
Double Spring for Smooth Operation
The integrated low-friction double spring automatically opens the jaws after each grip.
This allows repetitive gripping and positioning operations to be performed smoothly without manually separating the handles.
The gentle, even opening action is especially useful during electronics assembly, where small components may need to be repositioned repeatedly.
Combined with the multi-component handles, the spring mechanism helps reduce hand fatigue during extended work sessions.
Multi-Component Comfort Handles
The multi-component handles provide a comfortable, secure grip for controlled precision work.
Their design supports careful hand movements when handling delicate components or applying small amounts of gripping pressure.
The compact 115 mm overall length allows the pliers to be maneuvered easily in tight workspaces.
These are standard multi-component handles, not ESD-rated grips or electrically insulated safety handles.
Mirror-Polished, Oil-Hardened Steel
The pliers are manufactured from high-quality ball bearing chrome steel and oil-hardened for strength and durability.
The mirror-polished head provides corrosion protection when maintained with a light film of oil.
Knipex uses this polished finish rather than chrome plating to avoid the possibility of chrome particles peeling off and contaminating sensitive electronic assemblies.
Occasional cleaning and light oiling help maintain the finish and protect the tool during regular workshop use.
Frequently Asked Questions
What are the Knipex 35-42-115 pliers designed for?
They are precision electronics gripping pliers designed for holding, positioning, and bending small components during fine assembly and repair work.
How long are these pliers?
They measure 115 mm, approximately 4½ inches, overall.
What angle are the jaws bent?
The jaws are bent at 45°.
What is the advantage of the 45° bent nose?
The angled tips make it easier to reach components in confined spaces while keeping the handles clear of nearby obstructions.
Are the jaws round or flat?
They have half-round jaws with smooth gripping surfaces.
Are the gripping surfaces serrated?
No. The jaws are smooth ground to help protect delicate components from scratches and gripping marks.
Can these pliers be used on circuit boards?
Yes. They are designed for precision electronics work, including gripping and positioning components on printed circuit boards.
Are they suitable for handling delicate components?
Yes. The smooth jaws, rounded edges, and precise box joint make them well suited to delicate handling tasks.
Can they be used to bend fine wire?
Yes. They are designed for gripping, holding, and bending small components and fine wires.
Do these pliers have cutting edges?
No. They are gripping and bending pliers, not wire cutters.
What type of joint do they use?
They feature a precision box joint designed for stable, backlash-free movement.
What is the benefit of a box joint?
The box joint helps maintain accurate jaw alignment and minimizes unwanted sideways movement during use.
Are the pliers spring-loaded?
Yes. They feature an integrated low-friction double opening spring.
What does the double spring do?
It provides gentle, even jaw opening after each grip, making repetitive precision work more comfortable.
What type of handles do they have?
They feature multi-component handles designed for comfortable, controlled gripping.
Are the handles ESD-safe?
No. This model has standard multi-component handles and is not ESD-rated. Knipex offers a separate ESD version.
Are these pliers insulated for electrical work?
No. They are not electrically insulated and should not be used on energized electrical equipment.
What material are the pliers made from?
They are manufactured from oil-hardened ball bearing chrome steel.
What finish do the pliers have?
The head has a mirror-polished finish.
Why doesn't Knipex chrome-plate these pliers?
The polished finish avoids the risk of peeling chrome particles contaminating sensitive electronic assemblies.
How should the pliers be maintained?
Keep the tool clean and dry, and periodically apply a light film of oil to maintain corrosion protection.
How long are the jaws?
The jaw length is approximately 22.5 mm (0.89").
How thick are the tips?
The tips measure approximately 1.5 mm thick and 2.0 mm wide.
How much do the pliers weigh?
They weigh approximately 70 grams (2.5 ounces).

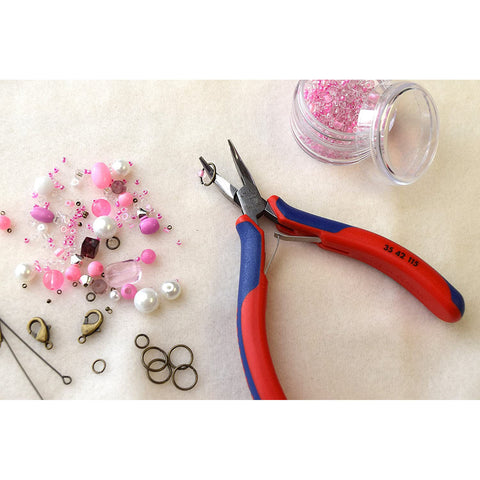

Are these pliers suitable for jewelry making?
Yes. Their smooth jaws and angled tips can be useful for handling fine wire and small jewelry components.
Can they be used for watch repair?
Yes. Their compact size and precision gripping surfaces make them useful for suitable fine mechanical and watch repair tasks.
What is the difference between Knipex 35-42-115 and 35-32-115?
The 35-42-115 features 45° bent, half-round jaws for improved access to confined areas. The 35-32-115 features straight, round pointed jaws for precision gripping and shaping.
Where are these pliers manufactured?
They are made in Germany.
How many pliers are included?
One pair of Knipex 35-42-115 precision electronics pliers is included.
| SKU: | 35-42-115 |
| UPC: | 843221004569 |
| Brand: | Knipex |
| MPN: | 35 42 115 |
| Made In: | Germany |
