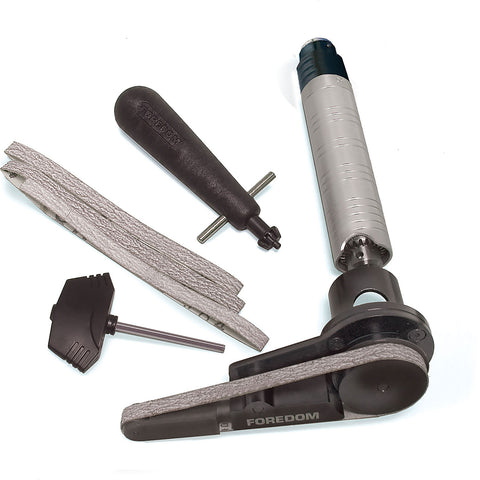

Foredom Belt Sander w/ 180 grit belt, hex key and 3 spare belts ea. 100, 180 and 240 grit and H.30 Handpiece w/ HPCK-0 Chuck Key
The H.30® Handpiece – or one of the similar handpieces listed below is required in order to use this sander!
We offer a choice of kits:
AK797210 – No Handpiece included
AK797230 – H.30® Handpiece – most popular version
AK797230H – H.30H Square Drive Handpiece
AK797230SJ – H.30SJ Slip Joint Handpiece
All Kits include:
10 Sandpaper Belts and Mounting Tools included with Kits:
* 10mm x 257mm Belt, 180 grit installed
* 3 ea. of 100, 180 & 240 grit, 10mm Belts

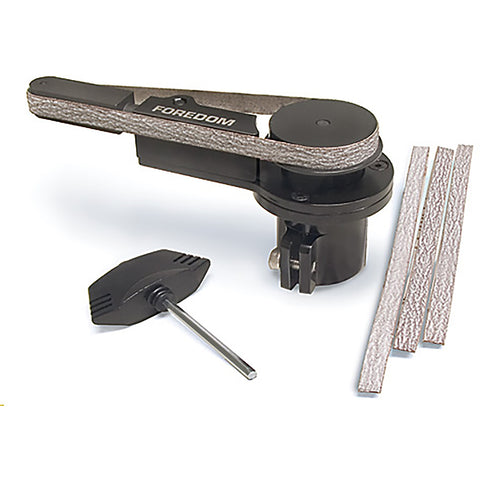

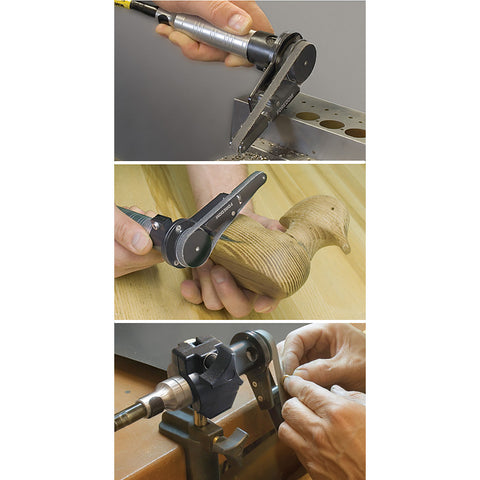

* A-69210 Drive Cup and A-69219 Hex Key, Foredom’s Belt Sander Attachment comes with a 180 grit belt installed and also includes 3 each of 100, 180, and 240 grit belts. The Belt Sander offers a power assist to sanding jobs and can be used to sand and smooth metal, wood, acrylic and composite materials. It is an all metal, quality-machined aluminum device that attaches with ease over the top of a Foredom H.30® handpiece (also fits H.30SJ slip joint and H.30H square drive models). It has 3 permanently lubricated ball bearings. Sandpaper belts measuring 7mm (9/32”) x 257mm (10-1/8”) come with the attachment and are available separately in 5-packs and assortments.
Specifications: 4-7/8” long x 1-3/4” wide (at widest) x 2” Tall. Ship weight: 8 oz.
Please Note: 10mm belts are available for all Sanding Belt Attachments (on website now and/or since 2011) with serial numbers starting with the numbers 11 and higher.
Attachments with these serial numbers can use both the 7mm and the 10mm
belts. Attachments with serial numbers starting with 09 and lower can
use only the 7mm belts. (The first letter of the serial number represents the month the unit was built and has no bearing on the belt width.)
Check Out The Foredom Tools Catalog
Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
