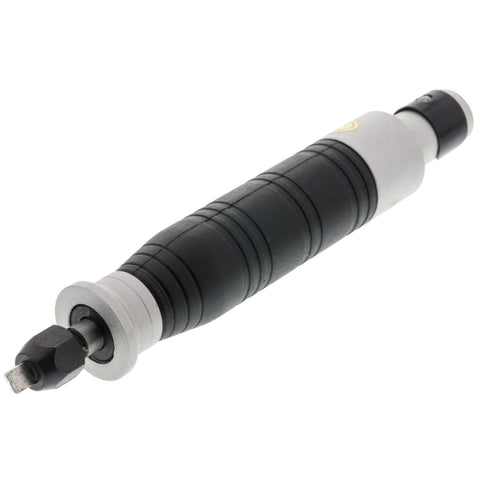

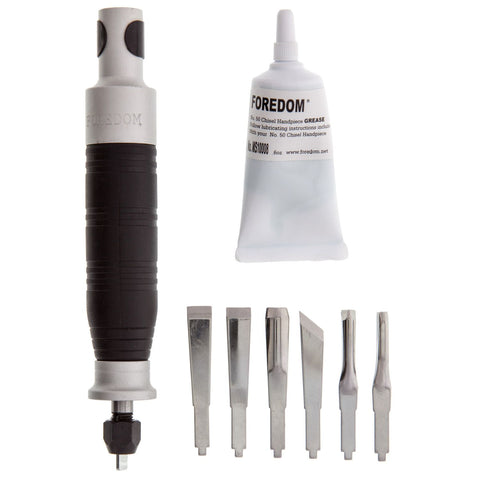

Handpiece, #50, Chisel, w/ set of 6 Chisels, A-KC503, A-KC504, A-KC505, A-KC509, & A-KC510
Chisel Handpiece must be used only in the forward motor direction.
Optimum Speed Range- 3,000-10,000 rpm.
Max. Operating Speed- 18,000 rpm.
Handpiece specifications: 6” long, 1” in diameter, weight: 4.6 oz., ship wt.: 6.65 oz.

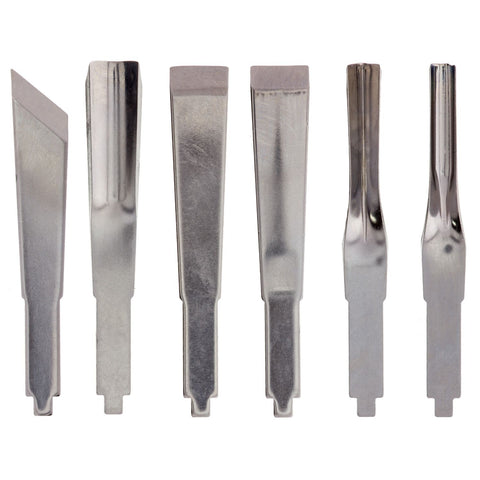

H.50C comes with A-KC503, A-KC504, A-KC505, A-KC506, A-KC509 and A-KC510 chisels.
Operating Tip: Using the chisel handpiece with a dial speed control is easier than with a foot operated control. Table top dial controls are available separately and named below. Consider ordering a kit containing the chisel handpiece and dial speed control (kit depends on motor -M.TX & M.LX or M.SR- that you have). Certain Foredom bench mounted flex shafts also come with dial controls built into their bases (models M.LXM, M.TXM and M.SRM).
* C.EM (for Series S, SR, CC and L motors)
* C.EMH (for Series H motors)
* C.EMX (for Series TX and LX motors)
Kits with Chisel Handpiece and Dial Speed Control and 11 chisels:
* Kit K.EM-50 (for Series S, SR, CC and L motors)
* Kit K.EMX-50 (for Series TX and LX motors)
Foredom offers 22 individual cutters that are sold separately and will also fit other power chisels including Proxxon and WeCheer. Member of the Foredom system of ”Interchangeable Handpieces”.
Check Out The Foredom Tools Catalog
Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
