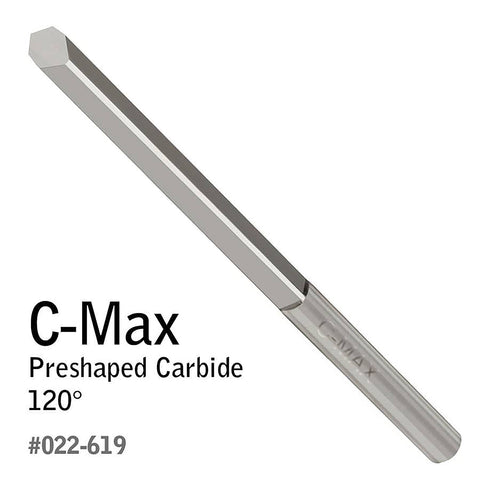

The GRS C-Max 120° V-Point Carbide Graver is a precision, pre-shaped tungsten carbide graver designed for hand engraving, jewelry engraving, background removal, fine-line engraving, general engraving, and shading. Its wide 120° V-point geometry provides engravers with a versatile cutting profile for detailed metalwork and specialized engraving techniques.

The C-Max V-Point is precision manufactured from special tungsten carbide, providing an effective combination of hardness and toughness for maintaining a precise cutting edge while working on a wide range of engravable metals. GRS developed C-Max specifically for engravers, stone setters, and other craftsmen who require durable, precision cutting tools.

The graver is pre-shaped to 120°, reducing the amount of initial grinding required compared with a blank. It should still be properly sharpened before use to create the final cutting edge and heel geometry needed for your specific engraving technique.

Features & Benefits

• 120° V-Point Geometry: Wide-angle cutting profile for versatile engraving and detailed metalwork.
• C-Max Tungsten Carbide: Special carbide formulation designed to balance hardness and toughness.
• Pre-Shaped Cutting Point: Supplied with the basic 120° V-point already formed to reduce preparation time.
• Sharpen Before Use: Allows the engraver to establish the final cutting edge and preferred heel geometry.
• Excellent for Background Removal: Useful for removing background material around engraved designs.
• Fine-Line Engraving: Suitable for controlled decorative and detailed cuts.
• Shading Applications: Useful for creating controlled shading and textural effects.
• General Engraving: Versatile tool for a wide range of hand engraving applications.
• 1/8-Inch Round Shank: Designed for the GRS QC Tool Holder for 1/8-inch Round tools.
• Professional GRS Quality: Designed for engravers, jewelers, stone setters, and precision metalworkers.

Applications

The GRS C-Max 120° V-Point Graver is ideal for:

• Hand engraving
• Jewelry engraving
• Fine-line engraving
• Background removal
• Shading
• Decorative engraving
• Ornamental engraving
• General metal engraving
• Precious-metal work
• Precision metalworking
• Stone-setting applications

C-Max Carbide Performance

GRS C-Max carbide was developed specifically for engraving and stone-setting applications. Its tungsten carbide construction is designed to provide the hardness needed for a precise cutting edge while maintaining the toughness required for demanding hand engraving work.

The 120° V-point is the widest angle in the GRS C-Max V-Point family. It is part of a range that also includes 60°, 75°, 90°, and 105° V-point geometries, allowing engravers to select a cutting angle suited to their particular technique and application.

Sharpening

This graver is pre-shaped but must be properly sharpened before use. Sharpening creates the final cutting edge and heel required for your engraving technique. Because carbide is hard and relatively brittle, use appropriate sharpening equipment and protect the finished point from impact.

Tool Holder Compatibility

The 120° C-Max V-Point features a 1/8-inch (3.175 mm) round shank and is designed for use with the GRS QC Tool Holder for 1/8-inch Round Tools (#004-873).

Key Specifications

• Brand: GRS
• Series: C-Max
• Tool Type: V-Point Carbide Graver
• Point Angle: 120°
• Profile: V-Point
• Shank Diameter: 1/8 inch (3.175 mm)
• Length: 1.8 inches (45.72 mm)
• Material: Special Tungsten Carbide
• Cutting Geometry: Pre-shaped 120° V-point
• Sharpening: Required before use
• Compatible Tool Holder: GRS QC Tool Holder for 1/8-inch Round Tools #004-873
• SKU: 022-619
• MPN: 022-619
• UPC: 196943901204
• Made In: United States

Why Choose the GRS C-Max 120° V-Point?

The GRS C-Max 120° V-Point gives professional engravers a ready-made wide-angle carbide geometry without starting from a completely unshaped blank. Its combination of a pre-shaped point, tungsten carbide construction, and 1/8-inch round shank makes it a practical addition to a professional graver collection.

Choose the 120° V-point when a wider cutting angle is preferred for your engraving, background removal, fine-line, shading, or general metalworking techniques.

GRS C-Max 120° V-Point — a precision carbide graver for demanding hand engraving and metalworking applications.
