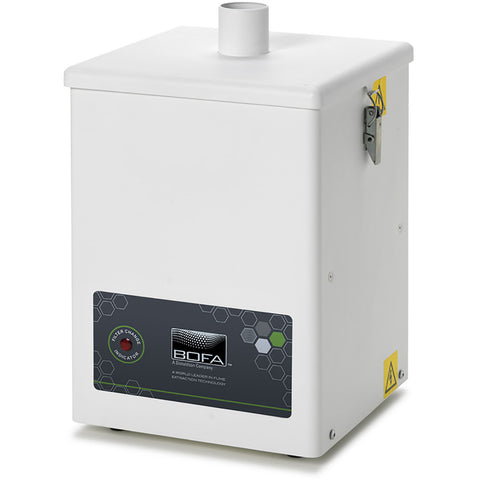

BOFA V200 Single Port Solder Fume Extractor with Arm – 115VAC
The BOFA V200 Single Port Fume Extractor with Arm Kit is a compact, portable fume extraction system designed for electronics hand soldering and bench-top soldering applications. It helps capture and filter potentially harmful soldering fumes directly at the workstation, providing a cleaner and more comfortable working environment.
The V200 combines 53 CFM airflow with a three-stage filtration system that includes a pre-filter for larger particulate, a HEPA filter for fine particles, and a chemical filter for fumes and gases. Its low operating noise of less than 54 dBA at typical operating speed makes it well suited for electronics production environments where noise control is important.
The 115VAC BOFA V200 includes a single extraction hose kit, pre-filters, and a combined filter, providing the essential components needed to set up a single-operator solder fume extraction station.
Features & Benefits
- Designed specifically for electronics hand soldering processes
- Helps capture and filter soldering fumes and airborne contaminants at the workstation
- 53 CFM airflow provides effective localized extraction
- Three-stage filtration for comprehensive fume and particulate filtration
- Pre-filter captures larger particulate
- HEPA filtration captures fine airborne particles
- Chemical filtration helps remove fumes and gases
- Low noise level of less than 54 dBA at typical operating speed
- Sealed AC motor suitable for cleanroom applications
- Compact and portable design makes the unit easy to relocate
- Fast and easy installation
- Single-port configuration is ideal for one soldering workstation
- Includes extraction arm/hose kit and replacement filtration components
- 115VAC configuration for compatible North American electrical systems
Key Specifications
- Brand: BOFA
- Product: V200 Single Port Fume Extractor with Arm Kit
- Model: V200
- Part Number: 10350593-1209
- MPN: V200
- UPC: 196943111610
- Voltage: 115VAC
- Extraction Ports: Single Port
- Airflow: 53 CFM
- Noise Level: <54 dBA at typical operating speed
- Filtration: 3-stage filtration
- Pre-Filter: A1030102
- Pre-Filter Quantity Included: Pack of 5
- Combined Filter: A1030099
- Motor: Sealed AC motor
- Primary Application: Electronics hand soldering
- Country of Manufacture: United Kingdom
Specifications and included components are based on the current Micro-Tools listing and manufacturer documentation.
Three-Stage Filtration
The BOFA V200 uses a three-stage filtration system designed to address different types of contaminants generated during soldering.
Stage 1 – Pre-Filter
Captures larger particles before they reach the main filter.
Stage 2 – HEPA Filter
Filters fine airborne particulate generated during soldering processes.
Stage 3 – Chemical Filter
Helps remove fumes and gaseous contaminants from the extracted air.
This combination makes the V200 a practical solution for localized fume extraction at electronics assembly and soldering workstations.
Portable Solder Fume Extraction
The BOFA V200 is designed with portability in mind. Its compact configuration allows the extraction system to be moved when production layouts or workstations change, making it useful for electronics manufacturing environments with flexible bench configurations.

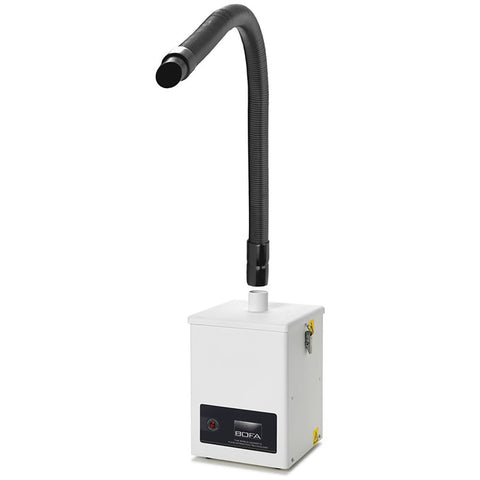

The single-port design is intended for one operator and one extraction point, while the included arm kit provides the connection needed to position extraction near the soldering operation.
Ideal Applications
The BOFA V200 is well suited for:
- Electronics hand soldering
- PCB assembly
- Electronics repair
- Bench soldering
- Electronic manufacturing
- Rework stations
- Production workstations
- Laboratory soldering
- Cleanroom-compatible applications
- Single-operator soldering stations
What's Included
- BOFA V200 Fume Extraction Unit

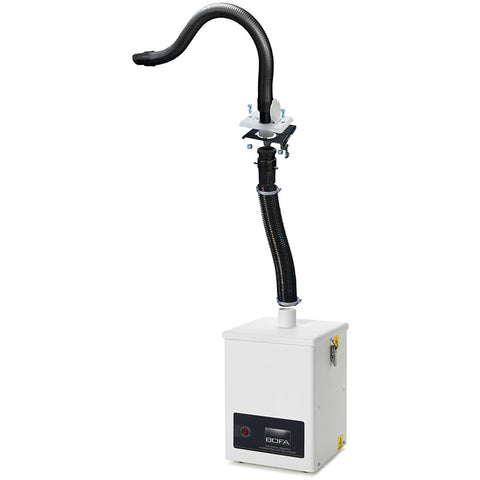

- Single Hose / Arm Kit
- A1030102 Pre-Filters – Pack of 5
- A1030099 Combined Filter
Frequently Asked Questions
What is the BOFA V200 used for?
The BOFA V200 is a single-port fume extraction system designed for electronics hand soldering processes. It helps capture and filter fumes and airborne contaminants generated during soldering.
How much airflow does the BOFA V200 provide?
The V200 provides 53 CFM airflow.
What type of filtration does the BOFA V200 use?
The V200 uses three-stage filtration, consisting of a pre-filter, HEPA filter, and chemical filter.
Is the BOFA V200 a single-port or dual-port extractor?
The V200 is a single-port fume extractor, making it suitable for a single soldering workstation or operator.
What voltage is this BOFA V200?
This version is configured for 115VAC operation.
How loud is the BOFA V200?
The V200 has a specified noise level of less than 54 dBA at typical operating speed.
Can the BOFA V200 be used in a cleanroom?
The V200 features a sealed AC motor designed for use inside cleanrooms. Always verify that the complete installation meets your facility's specific cleanroom requirements.
Is the extraction arm included?
Yes. This listing includes the single hose/arm kit required for the single-port configuration.
What replacement filters does the V200 use?
This listing includes A1030102 pre-filters and an A1030099 combined filter. Replacement filters should be selected according to the BOFA V200 specifications and application requirements.
What is the BOFA V200 part number?
The Micro-Tools SKU is 10350593-1209, while the BOFA model/MPN is V200. The UPC is 196943111610.
| SKU: | 10350593-1209 |
| UPC: | 196943111610 |
| Brand: | BOFA |
| MPN: | V200 |
| Made In: | United Kingdom |
