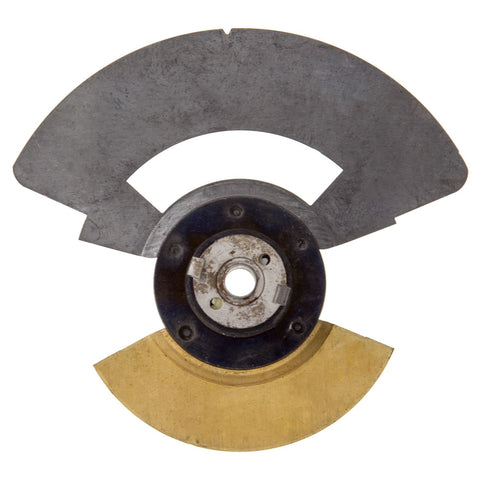

Kodak M80/M85/M95 Double-Blade Shutter .187" – Part 198395 + $10 Core

Restore proper operation in your Kodak M80, M85, or M95 movie projector with this rebuilt double-blade shutter assembly for a .187" shutter-drive shaft.

A deteriorated shutter gear can prevent the shutter from properly driving the projector mechanism. Since new shutters are no longer available, these late-style shutter assemblies are rebuilt to keep Kodak M-Series projectors in service. Your old rebuildable shutter is valuable as a core, so please return it whenever possible.

Features & Benefits

• Rebuilt shutter for Kodak M80, M85, and M95 movie projectors

• Double-blade shutter configuration

• Designed for a .187" shutter-drive shaft

• Kodak part number 198395

• Replacement for a shutter with a deteriorated or damaged gear

• Rebuilt with a new Delrin shutter gear

• Keeps otherwise serviceable Kodak M-Series projectors operating

• Exchange program helps maintain the supply of rebuildable shutters

• Made in the USA

Specifications

Be Sure You Need the .187" Shutter

Kodak M-Series shutters were produced for two shutter-drive shaft diameters: .185" and .187". The difference is only .002", so selecting the correct version by appearance alone is not reliable.

Measure the diameter of the shutter-drive shaft with a digital caliper before ordering. If the shaft measures .187" and your projector uses the double-blade shutter, part 198395 is the correct shutter configuration.

Double-Blade Shutter for M80, M85 & M95

The M80, M85, and M95 use the double-blade shutter configuration. This distinguishes part 198395 from the single-blade shutters used in the M70 and M90.

For the .187" shaft size:

• 198395 – Double blade, .187"

• 198574 – Single blade, .187"

For the .185" shaft size:

• 178642 – Double blade, .185"

• 178641 – Single blade, .185"

Checking both the number of shutter blades and the shaft diameter is essential when selecting a replacement.

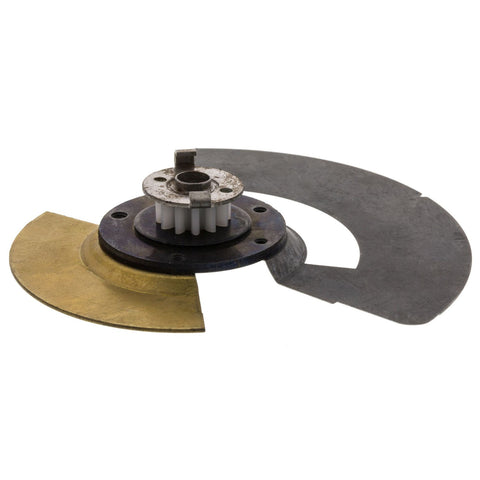

Rebuilt with a New Delrin Gear

One of the common failures in these projectors occurs when the original shutter gear deteriorates or its teeth break away.

New replacement shutters are no longer available. Rebuildable late-style shutters can instead be fitted with a new Delrin gear, allowing the shutter assembly to be returned to service without relying on increasingly scarce new-old-stock components.

Late-Style Shutter Core Required

Only the late-style shutter can be rebuilt. The early-style shutter cannot be rebuilt, although a rebuilt late-style shutter can be installed in a projector originally equipped with an early-style shutter.

If you have a rebuildable late-style shutter, please return it as a core. Keeping usable cores in circulation is essential to maintaining the supply of rebuilt shutters for these vintage projectors.

$10 Core Charge

A $10 core charge applies when a rebuildable old shutter is not supplied with your order.

• Send your old rebuildable shutter with your order and the core charge will not be billed.

• If no core is received with the order, the $10 core charge will be billed.

• Return your rebuildable shutter afterward to receive credit for the core.

There are no new shutters available, so returned cores allow us to continue rebuilding these assemblies for other Kodak M-Series projector owners.

Ideal For

• Kodak M80 movie projector repair

• Kodak M85 movie projector repair

• Kodak M95 movie projector repair

• Replacing a damaged shutter gear

• Replacing a broken double-blade shutter

• .187" shutter-drive shaft applications

• Kodak M-Series projector restoration

• Professional projector servicing

Frequently Asked Questions

Which Kodak projectors use this shutter?
This double-blade shutter is for compatible Kodak M80, M85, and M95 movie projectors requiring the .187" version.

What size is part 198395?
Part 198395 is the double-blade shutter for a .187" shutter-drive shaft.

How do I know whether I need .185" or .187"?
Measure the shutter-drive shaft with a digital caliper. The two sizes differ by only .002", so an accurate measurement is important.

What if my shaft measures .185"?
For an M80, M85, or M95 with a .185" shaft, you need the 178642 double-blade shutter instead.

Is this the same shutter used in the M70 and M90?
No. The M70 and M90 use a single-blade shutter. This 198395 shutter is the double-blade version for the M80, M85, and M95.

Is this a new shutter?
No. New shutters are no longer available. This is a rebuilt shutter assembly.

What is replaced during the rebuild?
The rebuild includes a new Delrin shutter gear to replace the failure-prone original gear.

Can every old shutter be rebuilt?
No. Only the late-style shutter can be rebuilt. Early-style shutters cannot be used as rebuildable cores.

Can a rebuilt late-style shutter replace an early-style shutter?
Yes. A rebuilt late-style shutter can be installed in a projector that originally used the early-style shutter.

How does the $10 core charge work?
Send us your rebuildable old shutter with your order and you won't be billed the core charge. If you order without sending a core, the $10 charge applies. Return a rebuildable core afterward and you'll receive credit.

Why is returning the old shutter important?
New shutters are no longer available. Returned late-style shutters provide the cores needed to rebuild replacement assemblies and keep these Kodak projectors operating.
