Tronex 50 Degree Miniature Flush Tip Cutters - 5075 and 7075

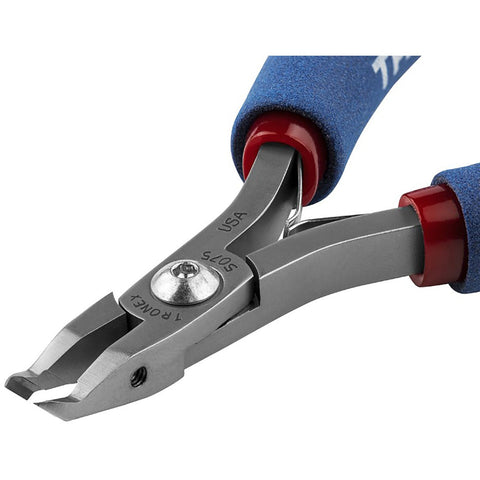

Reach fine wire in tightly packed assemblies with a miniature cutting head angled at 50 degrees. Designed for exceptionally fine cutting, these cutters combine a small head with a relieved profile to provide access around closely spaced components.

The compact head is particularly useful for surface-mount technology work, electronics assembly, and precision soft copper wire trimming. Flush cutting edges have a very small bevel that leaves only a slight pinch on the wire end, providing close-cutting performance for detailed tasks.

Choose standard handles for a more compact tool or long ergonomic handles for a larger gripping area. Both models are manufactured in the USA from carbon steel and feature double-sheathed, ESD-safe cushioned grips.

Features and Benefits

• 50-Degree Angled Head: Provides an alternative approach to cutting points when nearby components restrict access.

• Miniature Cutting Head: Designed for exceptionally fine work where larger cutter heads may be difficult to position.

• Relieved Head Profile: Provides additional clearance around small components and crowded assemblies.

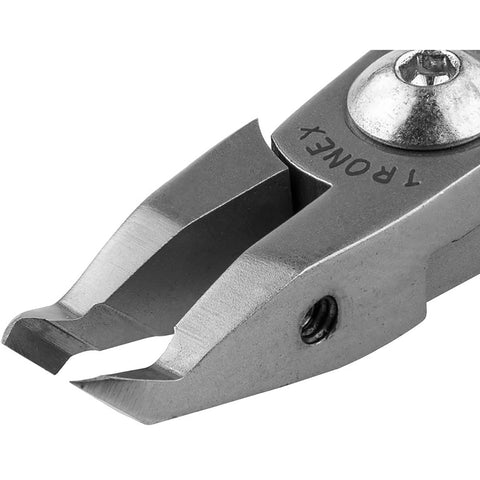

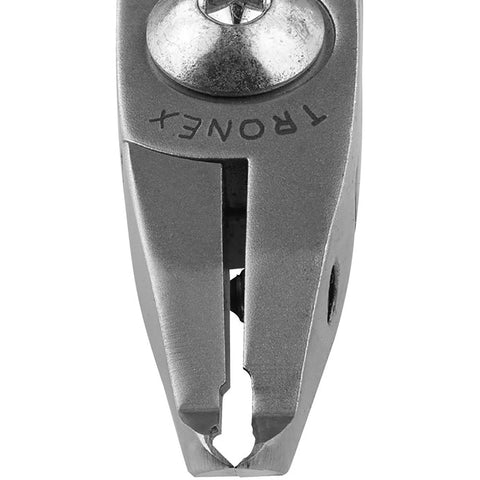

• Flush Cutting Edges: Produce close cuts with only a slight pinch remaining on the wire end.

• ESD-Safe Cushion Grips: Double-sheathed grips provide cushioned handling for detailed work in static-sensitive environments.

• Two Handle Options: Choose standard or long ergonomic handles to suit your hand size and grip preference.

Available Variants

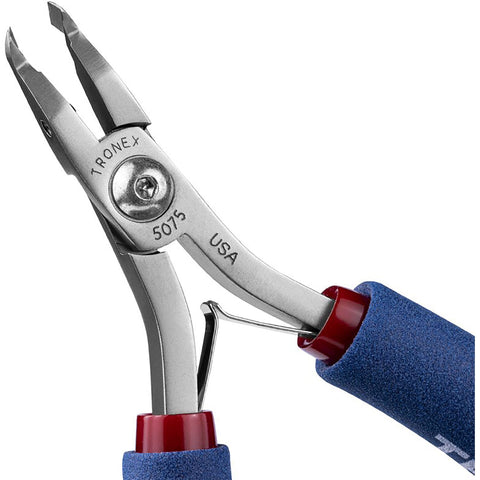

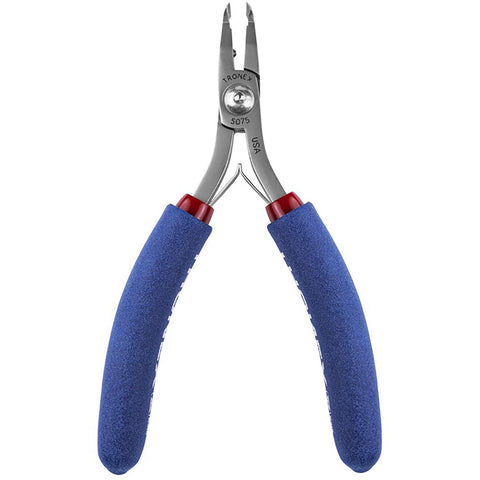

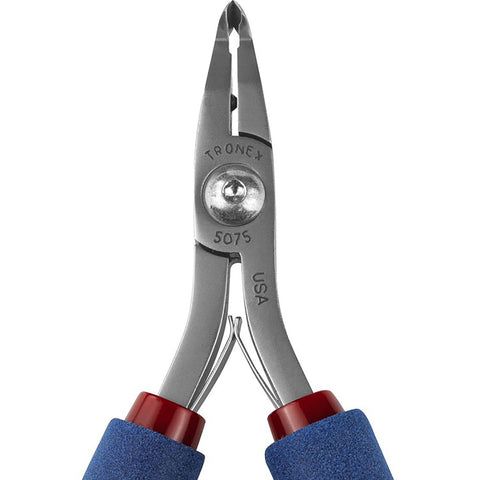

Tronex 5075 - Standard Handles

Measures 4.9 inches overall and features standard-length handles. This is the more compact option for users who prefer a shorter tool.

Tronex 7075 - Long Ergonomic Handles

Measures 5.9 inches overall and features longer ergonomic handles. The extended handles provide a larger gripping area and help distribute cutting pressure across the hand.

Both models have the same miniature 50-degree cutting head, Flush cutting edges, and soft copper wire capacity. Select your preferred handle style from the available options.

Specifications

• Brand: Tronex

• Models: 5075 and 7075

• Tool Type: Miniature Angulated Tip Cutter

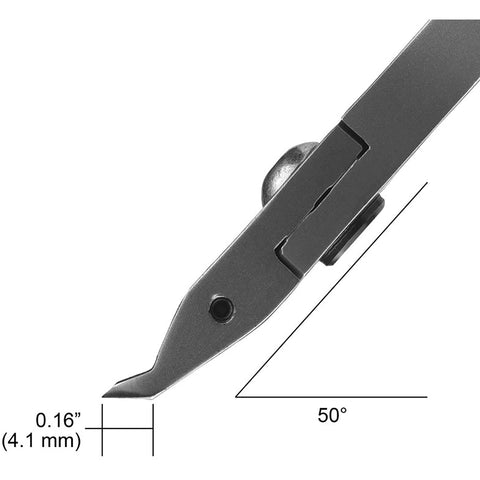

• Head Angle: 50 Degrees

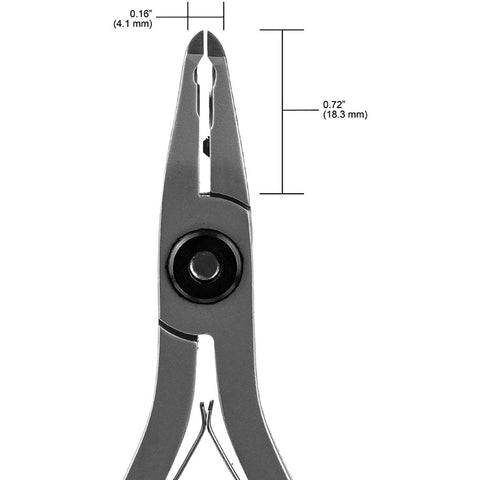

• Head Style: Miniature

• Head Profile: Relieved

• Cutting Edge: Flush

• Material: Carbon Steel

• Soft Copper Wire Capacity: 0.004 to 0.025 inch

• Metric Cutting Capacity: 0.1 to 0.65mm

• Specified Wire Gauge Range: 38 to 22 AWG

• 5075 Overall Length: 4.9 inches

• 7075 Overall Length: 5.9 inches

• Grip Type: Double-Sheathed ESD-Safe Cushion Grips

• Country of Manufacture: USA

Applications

Suitable for surface-mount technology work, detailed electronics assembly, and precision soft copper wire trimming. The miniature relieved head is especially useful when closely spaced components leave limited room to position a cutter.

All cutting capacities apply to soft copper wire. Stay within the specified capacity and use a cutter specifically rated for harder materials.

Frequently Asked Questions

What is the difference between the 5075 and 7075?

The 5075 has standard handles and measures 4.9 inches overall. The 7075 has long ergonomic handles and measures 5.9 inches overall. Both models have the same cutting head, Flush edges, and soft copper wire capacity.

What is the advantage of the miniature angled head?

The small head and 50-degree angle help you reach cutting points around closely spaced components. The relieved profile provides additional clearance in confined areas.

Are these cutters suitable for surface-mount technology work?

Yes. The miniature head is designed for exceptionally fine cutting in surface-mount technology applications and other detailed electronics work.

What wire sizes can these cutters handle?

Both models are rated for soft copper wire from 0.004 to 0.025 inch in diameter. The specified metric range is 0.1 to 0.65mm, with a wire gauge range of 38 to 22 AWG.

Are these Flush or Razor Flush cutters?

Both models have Flush cutting edges. Flush edges have a very small bevel that leaves a slight pinch on the cut end. Razor Flush edges have no bevel and leave virtually no raised material.

Can these cutters be used on steel or memory wire?

The stated cutting capacity applies only to soft copper wire. It does not establish suitability for steel, memory wire, or other harder materials. Use a cutter specifically rated for the material you intend to cut.

Are both handle options ESD safe?

Yes. Both models have double-sheathed, ESD-safe cushioned grips.

Where are these cutters manufactured?

Both the Tronex 5075 and 7075 are manufactured in the USA.

Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.

All Cutting Capacity Ratings are for soft copper wire.
