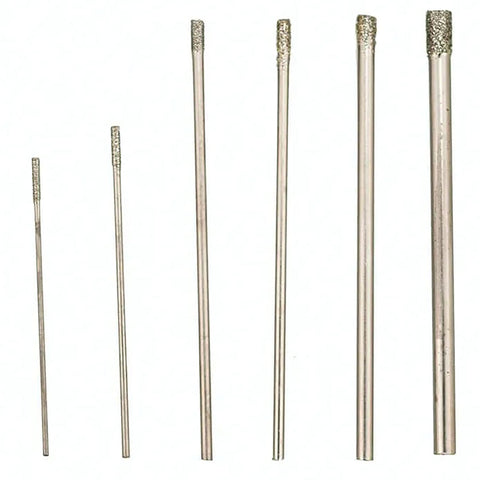

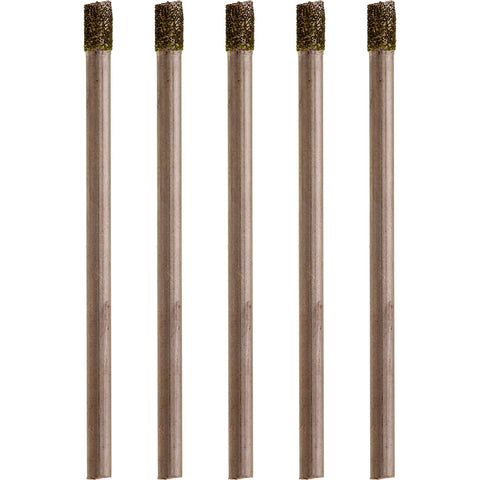

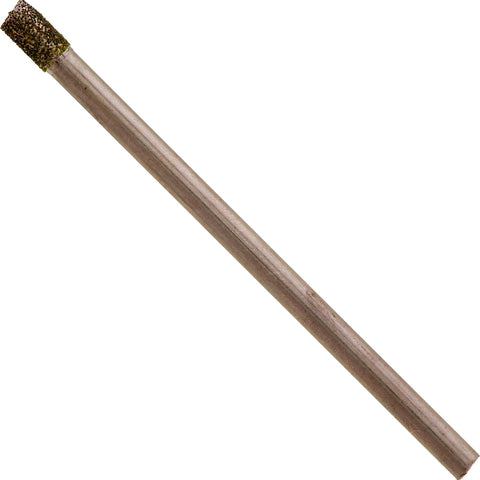

Crystalite Standard Diamond Drill, 0.75 - 2.50mm

  • $17.95
  • Save $2

Man made diamonds bonded to a durable music wire providing a positive clearance (kerf) allows easy drilling without jamming. Recommended operating speed is 5000 to 20000 RPM.

Diamond Drills


  • Start hole by allowing only a minimum amount of drill tip to protrude beyond the collet or chuck jaws since shank size is only .020.
  • Once the hole is started, adjust drill length as necessary.
  • Run at 10,000 rpm minimum or more.
  • Submerge in water or use constant flow.
  • Use drill press. Handheld tools are not recommended.
  • Use rapid up or down motion when drilling, light to moderate pressure.
  • IMPORTANT: Always recognize that the drill tip must always have coolant. A combination of excessive speed, pressure, dwell without lifting the drill, will deprive the drill of water and the tip may overheat and poof!

 Note: Automatic drills do not have sufficient pressure. Use hand feed.


Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
