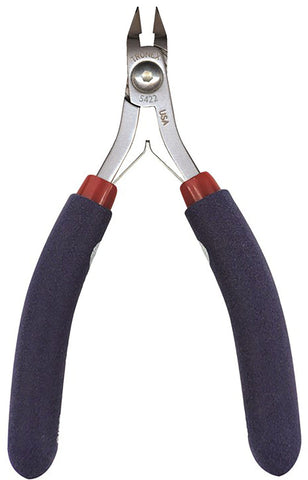

Cutters – Tungsten Alloy Body Miniature Taper Relief Flush

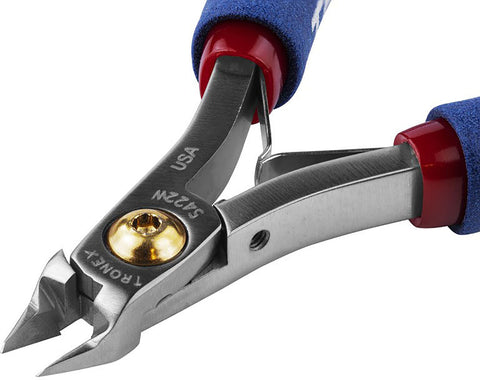

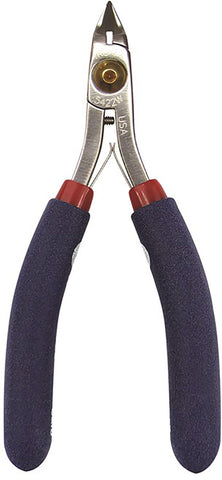

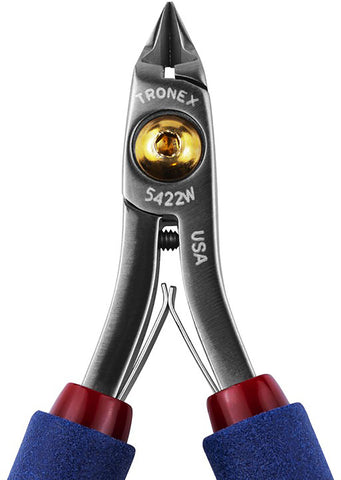

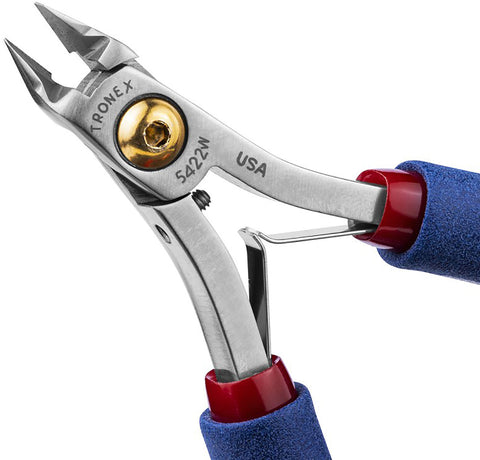

The Tronex 5422W is a specialized precision cutter engineered for ultra-fine hard wire applications where access is limited. Manufactured from solid tungsten alloy steel and hardened to 66–68 HRC, this miniature taper relief cutter delivers exceptional durability and precise flush cuts on fine hard wire materials such as stainless steel and Nitinol. Its relieved taper head design provides superior access beneath components and into confined spaces, making it an ideal choice for electronics, medical device, and precision assembly applications.
Features & Benefits
- Precision-ground flush cutting edges provide clean, accurate cuts
- Constructed from solid tungsten alloy steel for exceptional wear resistance

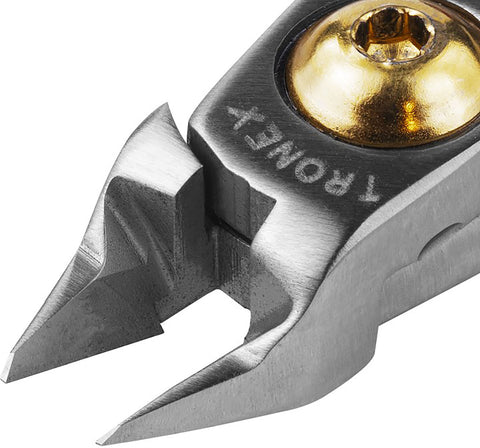

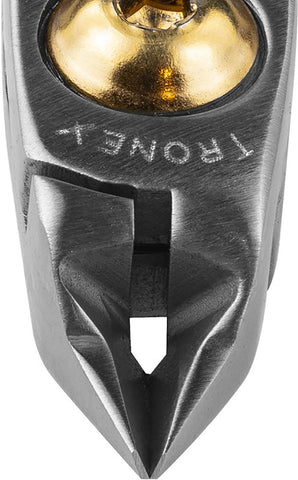

- Mini taper relieved head offers superior access under components and in tight spaces
- Designed specifically for ultra-fine hard wire applications
- Ideal for cutting Nitinol, stainless steel, and other fine hard wires
- Hardened cutting edges (66–68 HRC) deliver outstanding edge retention
- Polished finish with distinctive gold pivot screw
- Manufactured in the USA to exacting quality standards
Key Specifications
- Model: 5422W
- Application: Ultra-fine hard wire cutting

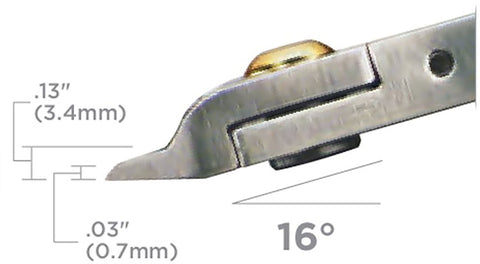

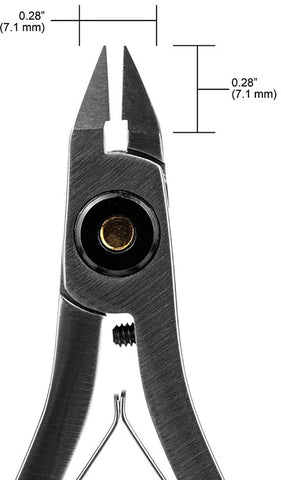

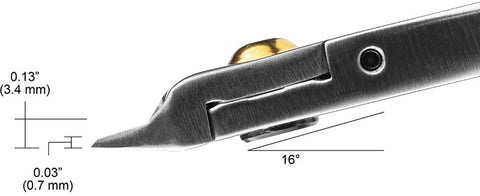

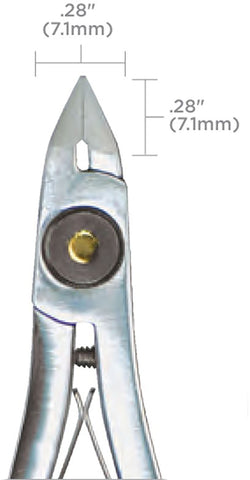

- Head Shape: Mini Taper Relief
- Cut Type: Flush
- Material: Tungsten Alloy Steel
- Hardness: 66–68 HRC
- Handle Style: Standard (Short)
- Finish: Polished with Gold Screw
- Cutting Capacity: .003"–.010" (0.08–0.25 mm) hard wire
- AWG Range: 39–30 AWG
- Overall Length: 4.6" (117 mm)
- Country of Origin: USA
