Mandrel, Sandpaper Split Type

  • $1.79
  • Save $0.31


These nickel plated mandrels have slots for inserting and wrapping small pieces of sandpaper, creating a custom sander with a rotary tool. See full descriptions and sandpaper templates below.

20,000 RPM Max Speed

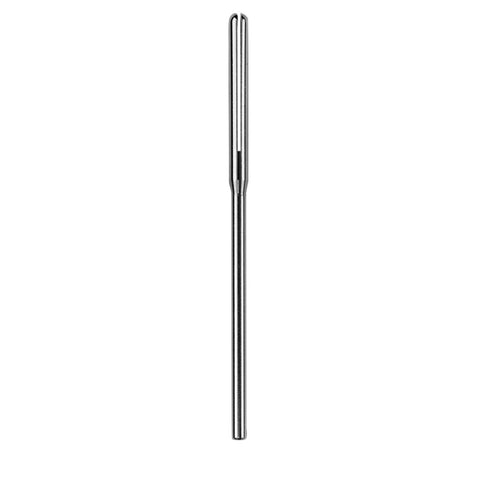

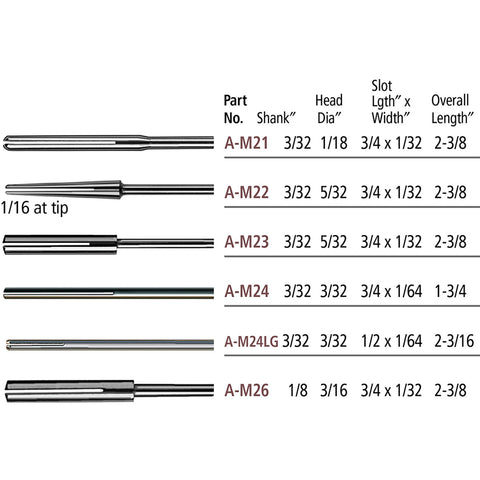

A-M21 – 3/32″ shank – 1/18″ head diameter – 3/4″ x 1/32″ slot size – 2-3/8″ total length
A-M22 – 3/32″ shank – 5/32″ head diameter – 3/4″ x 1/32″ slot size – 2-3/8″ total length
A-M23 – 3/32″ shank – 5/32″ head diameter and 1/16″ at tip – 3/4″ x 1/32″ slot size – 2-3/8″- total length
A-M24 – 3/32″ shank – 3/32″ head diameter – 3/4″ x 1/64 1-3/4″ slot size – total length
A-M24LG – 3/32″ shank – 3/32″ head diameter – 1/2″ x 1/64″ slot size – 2-3/16″ total length
A-M26 – 1/8″ shank – 3/16″ head diameter – 3/4″ x 1/32″ slot size – 2-3/8″ total length

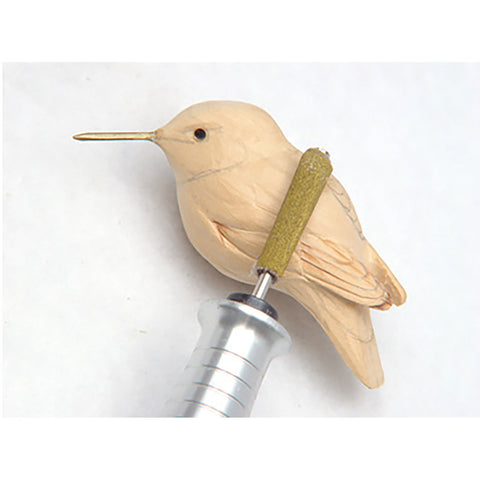

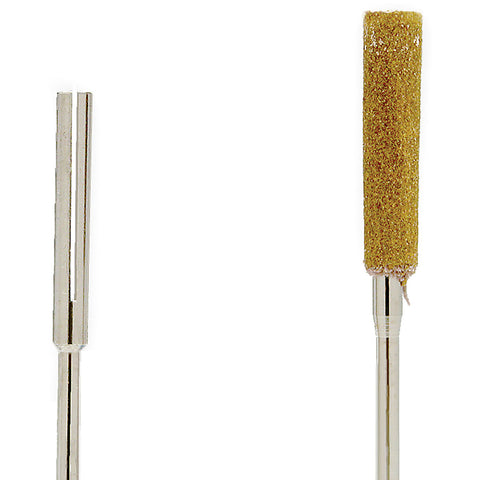

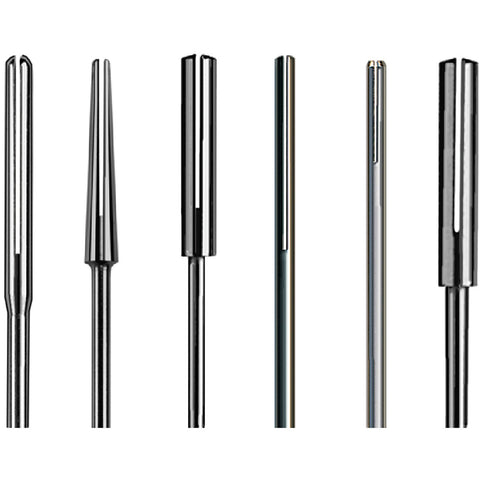

Sandpaper or split mandrels have a “split” above the reinforced base allowing the user to wind sandpaper, polishing cloth, or other abrasives around the gap. These mandrels come in straight and tapered styles and are generally used to sand in tight spots. The straight version is good for finishing smooth surfaces while the tapered offers access to undercuts.
Maximum and recommended speeds depend on the type and size of accessory, as well as the mandrel in use. The ratings we publish for our mandrels are based on an 1″ overhang with an accessory that weighs under 1 gram, and is smaller than 1/2″ in diameter. As a general rule, smaller accessories and mandrels can be used at higher speeds than larger accessories and mandrels. It is a good idea to follow the recommendations that come with both the accessory and the mandrel you are using.

Click this link for instructions and a template to load sandpaper on the split mandrel.

SKU: FOR-A-M26
UPC: 098666881262
Brand: Foredom
MPN: A-M26
Made In: United States

Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
