Mandrel, Taper Type, Left Hand Thread, 7/32” dia. Shoulder x 1/8” dia Arbor Screw with 3/32” Shank A-M7L

  • $1.94
  • Save $0.35



Left Hand Threaded Mandrels with 3/32″ Shanks– For running in Reverse Operation 40,000 RPM Max Speed
The left handed threads on these mandrels hold accessories securely and self tighten while running in reverse in flex shafts and micromotors. They have notches on their shanks for easy identification.

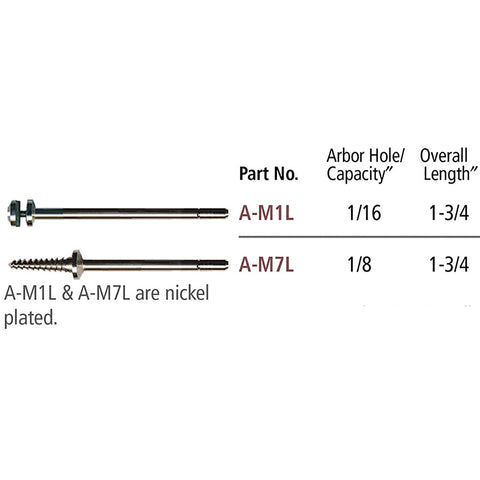

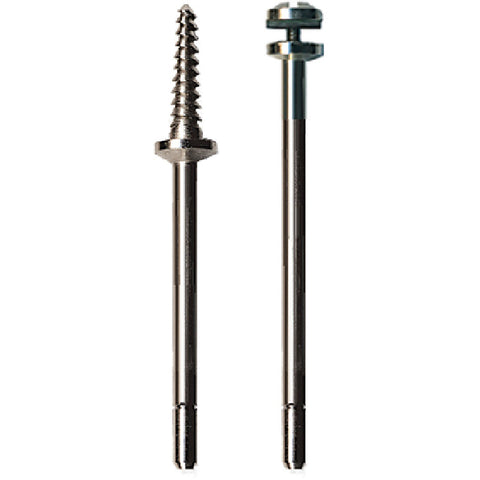

A-M1L – 1/16″ Arbor Hole Capacity Screw Type- 1-3/4″ Overall Length
Screw mandrels can hold a wide variety of unmounted accessories.

A-M7L – 1/8″ Arbor Hole Capacity Tapered- 1-3/4″ Overall Length
Tapered mandrel is for mounting polishing accessories with vertical shapes and 1/8″ arbor holes. 1-3/4″ overall length.

40,000 RPM Max Speed. Left hand threads hold the accessory securely and self tighten while running in reverse operation in flex shafts and micromotors. Notch on bottom of shank identifies this mandrel as left hand threaded.
Tapered or spiral mandrels allow the user to simply screw the accessory down onto the threads of the mandrel and, once rotation begins, it will automatically tighten onto the widening taper. This open thread design provides good stability throughout the length of the accessory. Tapered mandrels come in different shank and taper dimensions. Be sure to select the right one for the accessory and collet (or chuck) you intend to use.

Check Out The Foredom Tools Catalog

SKU: FOR-A-M7L
UPC: 098666881279
Brand: Foredom
MPN: A-M7L

Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
