Foredom K.1030 Portable Rotary Micromotor Kit, 2.35mm (3/32?) Collet, Universal Voltage
* Run time is approximately 5 hours, depending on how long the micromotor is in continuous use when in battery mode, or plug it in for day-long use. Battery charge time is 3 hours.
* Perfect for users who work at multiple stations, or for signing/personalizing work pieces at craft and outdoor fairs when no power is available.
* Handpiece (motor) is small and lightweight but has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication.
* The handpiece has a twist release rotary type collet for easy changes of 2.35mm (3/32) or 1/8 shank burs, depending on choice of collet installed.
* Collets can be installed and changed. Consider Collet Adapters, that step down collet sizes without having to switch out a collet, for handpieces with 1/8 collets.
Two Year Limited Warranty

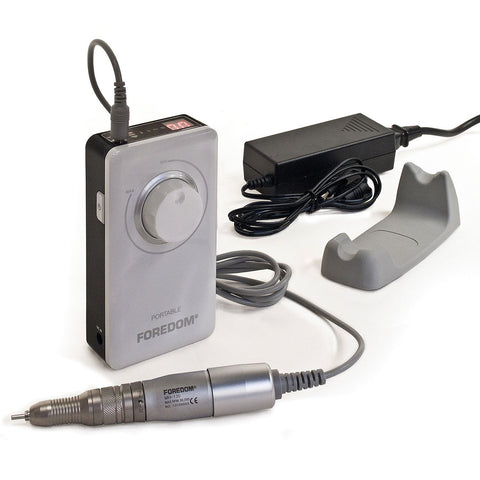

- HP4-310 Control Box
- H.MH-130 with 2.35mm (3/32”) collet installed or H.MH-13018 with 1/8” collet installed.
- HP8-306 Charger/Adapter
- HP4-933 Handpiece Cradle
- HP8-163 Spare pair of motor brushes
- Collet Changing Wrenches HP4-993
HP4-310 Control Unit with Built-in Rechargeable Battery
Specifications:2-34 Wide, 1-14 Deep, 5-14 Tall, 9.77 oz. Output: DC 12V/1.2A
Front: Speed Control Dial
Top: Handpiece Connector Port, 2-Digit RPM Display, LED Indicator Lights: Optional On/Off Foot Switch in use, Rotational Direction, Battery Charging, and Overload Protection Circuitry
Side Panels: On/Off Button, Adapter/Charger Connector Port, Forward/Reverse Button, Optional Foot Switch Connector Port, On/Off Foot Switch (Optional) Button
Specifications: 5 Long, 1/2 Diameter at grip, 7/8 at motor, 6.46 oz/183g, Cord Length: 59DC12V/1.2A, 4.11 in.- oz or 29mNm or 25W Max Torque or Watt Output
The Handpiece is small and lightweight yet has plenty of power for fine detailing, polishing and even grinding on metal, wood, glass and many other materials. Its fan cooled, brush type continuous duty motor runs cool and vibration-free. It has permanently lubricated, shielded ball bearings that require no additional lubrication. The handpiece has a twist release rotary type collet for easy changes of 3/32 or 1/8 shank burs, depending on collet installed.
Consider purchasing a separate ”Collet Adapter” that fits inside the handpiece collet and allows the use of smaller shank size accessories without having to actually change the collet. We offer five sizes of adapters that fit in all of our micromotor handpieces except the hammer and chuck styles. See related products below.
Specifications: 14.8v 1,800mAh
Charging Time: 3 hours, Working Time: 5 hours
Specifications: Input: 110-240 Volt, 50/60hz, Output: DC18V/1.8A
