Foredom K.1040 High Speed Rotary Brushless Micromotor

  • $743.32
  • Save $131

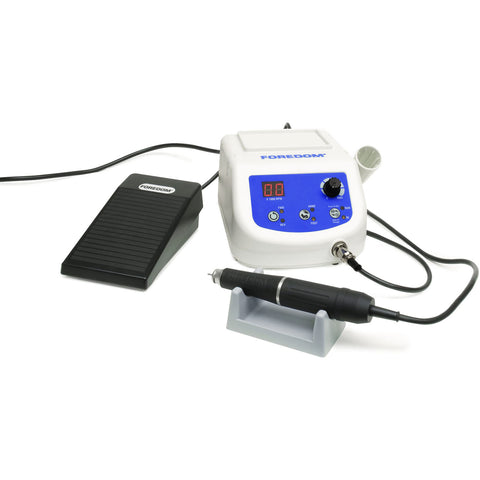

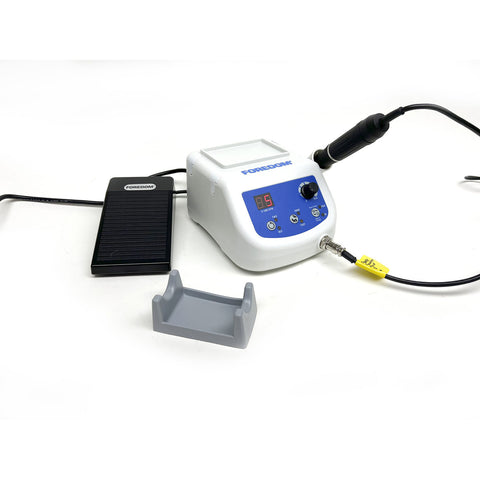

NEW! K.1040 High Speed Rotary Brushless Micromotor

Slow, Steady and Smooth! High Torque Start.

Brushless motor design – eliminating the need to replace carbon brushes

Two speed settings:
Setting 1 – Full speed range up to 50,000 RPM.
Setting 2 – 500 RPM – 5,000 RPM.

  • Maximum Torque – (11.3 oz-in / 8 N-Cm) or 160 Watts Output Power
  • Sealed housing eliminates dust, noise, and vibration
  • 115 or 230 Volt
  • Two Year Warranty
  • UKCA and CE marked, double insulated

Specs: 8.6 lbs. kit shipping weight, shipping dimensions: 12? x 10-1/4? x 5-1/4?


  • Ergonomic, comfortable grip
  • Brushless with long-lasting ball bearings
  • Easy bur changes – twist to release or lock bur
  • Designed for simple collet changes to use 3/32? (2.35mm) or 1/8? shank burs

Specs: 6-1/2? long, 1-1/8? diameter at thickest end, 1/2? diameter at nosecone, 5´ long handpiece cord, weighs 8.9 oz.

Control Box with Front Panel LED

  • Dial speed control sets precise speed and can set a maximum speed for operation with foot control
  • LED digital speed display
  • Select: Forward or Reverse rotation, Dial or Foot speed control, 115 or 230 Volt
  • Built in overload protection
  • Convenient handpiece holder with four (4) optional locations on control box
  • Tray with lip on top of control box to hold small items
    Specs: 50/60 Hz, 250 Input Watts, 6? wide x 8? deep x 4-1/4? high, 6´ cord, weighs 5.4 lbs.

Variable Speed Foot Control: 3-3/4? wide x 6-1/4? long x 2-1/2? high, weighs 25 oz.

SHIPPING METHOD: This item must ship via UPS. During the checkout process you may be offered Priority Mail but this item must ship via UPS. If you select Priority Mail, it will only slow down the process as we will have to change the shipping method after the fact and charge the difference. We have learned the hard way to not ship fragile or high value items via Priority Mail.


SKU: FOR-K.1040
UPC: 098666033753
Brand: Foredom
MPN: K.1040

Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
