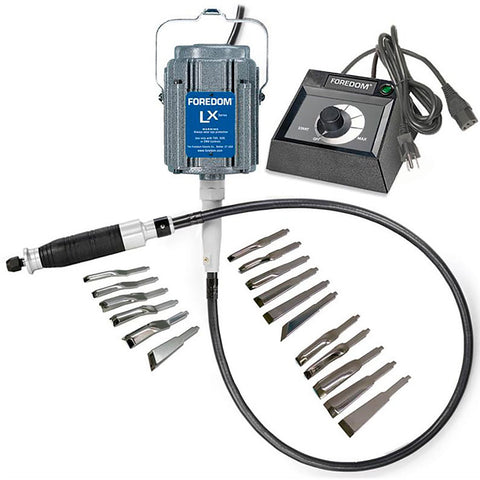

Foredom K.2252 Chisel Carving Kit, 115v

  • $383.66
  • Save $67


PrePackaged Tool Kits contain just about everything you need to get to work- motor, speed control, handpiece and accessories. They take the guesswork out of product selection, offer the best value, and feature smart tool combinations for specific applications.

Motor and Speed Control carry a 2-Year Limited Warranty.

Components:

1. Series LX Motor: These permanent magnet motors are specifically designed for high torque/low speed applications, offering more power for jobs like stone setting, wax modeling, and pearl drilling. M.LX, M.LXM, and M.LXB ball bearing motors feature full power and torque from start up and throughout the entire speed range up to 5,000 rpm. They are ideal for use with Foredom's drill presses. They also are well matched with the H.18, H.15 and H.15D Quick Change and Hammer Handpieces for stone setting. It comes equipped with a motor bale for hanging, and Foredom's standard 39″ long key-tip shafting for connecting to any of Foredom's interchangeable, quick disconnect handpieces.M.LX motors are available in 115 Volt and 230 Volt.Foredom's permanent magnet motors require the use of a C.TXR, C.SXR, or C.EMX speed control. Damage will result if the motor is connected to any other speed control.

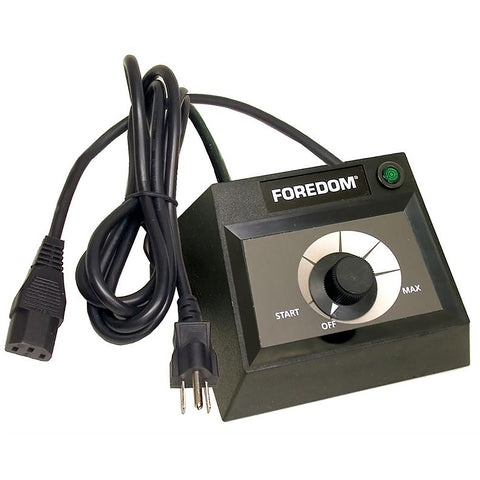

2. C.EMX Speed Control: This table top speed control is constructed of heavy duty plastic with durable solid state electronics. It has a dial control for precise speed settings, as well as good repeatability of previous settings. The C.EMX-1 has special electronics that converts AC current from an electrical outlet to DC current- the type required by the motor. It also has a special plug that fits the motor’s shielded plug.For use with 115 Volt M.TX, M.TXB, M.TXH, M.LX, M.LXB, M.LXH and M.LXBH motors. 5″ long, 5-7/8″ wide, 2-3/4″ high, 2 lb /1 kg packaged wt. It is interchangeable with Foredom’s C.TXR-1 and C.SXR-1 controls.

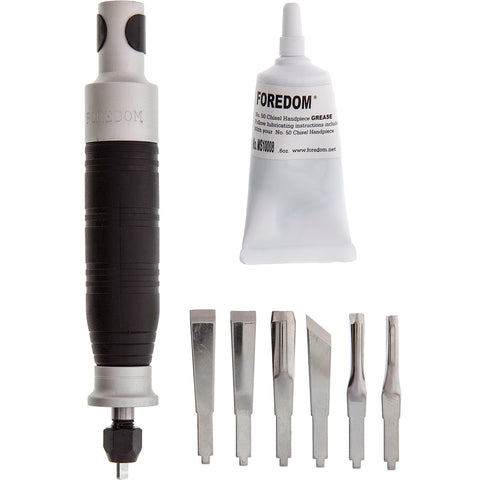

3. H.50 Chisel Handpiece: Foredom’s chisel handpiece gives a power assist to carving projects in all types of wood, plastic, and plaster. This handpiece has a contoured body design that features a rugged plastic barrel and tapered aluminum ends. The easy to maintain chisel handpiece is recommended for use at low speed with Series TX and LX motors and in forward rotation only with Series SR motors. Handpiece attaches to any flex shaft machine with a standard key tip shaft. The Chisel Handpiece must be used only in the forward motor direction. Recommended Speed:Optimum Speed Range- 3,000-10,000 rpm.

Max. Operating Speed- 18,000 rpm.

Handpiece specifications: 6″ long, 1″ in diameter, 4.6 oz, 6.65 oz packaged wt.

Maintenance: After every 200 hours of use you should clean and lubricate this handpiece. The old grease must be cleaned off of the interior cam chamber and replaced with new lubricant. If you do not have Foredom Grease (Part No. MS10008), it is available in Foredom's web store under Supplies and Parts – Lubrication- All Lubricants. Follow the instructions that came with your handpiece or click on the link for step by step maintenance instructions.Operating Tip: Using the chisel handpiece with a dial speed control is easier than with a foot operated control.

4. 6pc Chisel SetAKHK550 with A-KC503, A-KC504, A-KC505, A-KC506, A-KC509, and A-KC510 chisels.

5. 5pc Chisel Set AKHK560 with A-KC501, A-KC502, A-KC507, A-KC508, and A-KC511 chisels.

6. 6pc Chisel Set AKHK570 with A-KC512, A-KC513, A-KC514, A-KC515, A-KC516, and A-KC517 chisels.

7. Flexible shaft grease

SKU: FOR-K.2252
Brand: Foredom
MPN: K.2252
Made In: United States

This product is shipped from a different location than our main warehouse and therefor may take a couple of extra days to process.


Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
