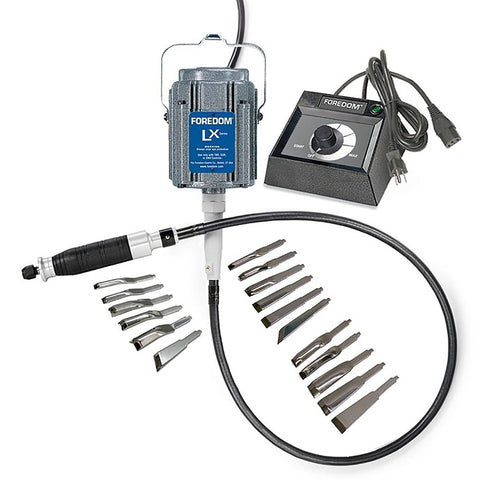

Chisel Carving Kit w/ 1/10 hp LX Motor, EMX Plastic Dial Speed Control, H.50 Chisel Handpiece, MAMH-1 Motor Hanger and chisel sets AKHK550, AKHK560 AKHK570, 115v
Prepackaged Tool Kits contain just about everything you need to get to work- motor, speed control, handpiece and accessories. They take the guesswork out of product selection, offer the best value, and feature smart tool combinations for specific applications.
Motor and Speed Control carry a 2-Year Limited Warranty. 230V options include the necessary corresponding speed control and motor components.
1. Series LX Motor: These permanent magnet motors are specifically designed for high torque/low speed applications, offering more power for jobs like stone setting, wax modeling, and pearl drilling.
2. C.EMX Speed Control: is a table top speed control in heavy duty plastic housing. It has a dial control for precise speed settings, as well as good repeatability of previous settings. The
C.EMX-1 has special electronics that converts AC current from an electrical outlet to DC current- the type required by the motor. It also has a cord with plug that fits the motor’s shielded plug. For use with 115 Volt M.TX, M.TXB, M.TXH, M.LX, M.LXB, M.LXH and M.LXBH motors. 5″ long, 5-7/8″ wide, 2-3/4″ high, 2 lb /1 kg packaged wt. It is interchangeable with Foredom’s C.TXR-1 and C.SXR-1 controls.
3. H.50 Chisel Handpiece: works in all types of wood, plastic, and plaster. This handpiece has a contoured body design that
features a rugged plastic barrel and tapered aluminum ends. The easy to maintain chisel handpiece is recommended for use at low speed with Series TX and LX motors and in forward rotation only with Series SR motors. Handpiece attaches to any flex shaft machine with a standard key tip shaft. The Chisel Handpiece must be used only in the forward motor direction. Optimum Speed Range- 3,000-10,000 rpm.
Max. Operating Speed- 18,000 rpm.
Handpiece specifications: 6″ long, 1″ in diameter, 4.6 oz, 6.65 oz packaged wt.
Maintenance: After every 200 hours of use you should clean and lubricate this handpiece. The old grease must be cleaned off of the interior cam chamber and replaced with new lubricant. If you do not have Foredom Grease (Part No. MS10008), it is available in our web store under Supplies and Parts – Lubrication- All Lubricants. Follow the instructions that came with your handpiece or click on the link for step by step maintenance instructions. Operating Tip: Using the chisel handpiece with a dial speed control is easier than with a foot operated control. Table top dial controls are available separately and named below. Consider ordering a kit containing the chisel handpiece and dial speed control (kit depends on motor -M.TX & M.LX or M.SR- that you have). Certain Foredom bench mounted flex shafts also come with dial controls built into their bases (models M.LXM, M.TXM and M.SRM).
4. 6pc Chisel SetAKHK550 with A-KC503, A-KC504, A-KC505, A-KC506, A-KC509, and A-KC510 chisels, 5pc Chisel Set AKHK560 with A-KC501, A-KC502, A-KC507, A-KC508, and A-KC511 chisels and 6pc Chisel Set AKHK570 with A-KC512, A-KC513, A-KC514, A-KC515, A-KC516, and A-KC517 chisels.
6. Flexible shaft grease
