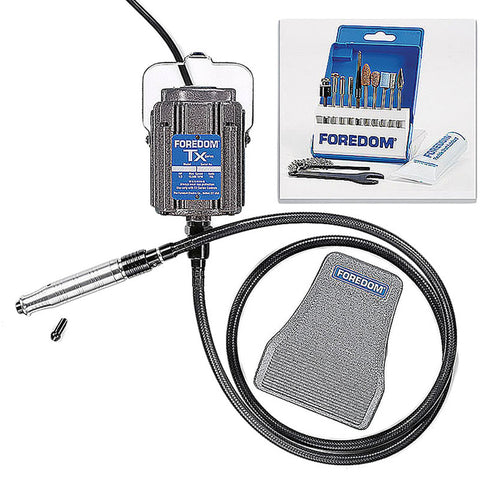

Industrial Kit w/ 1/3 hp TX Motor with 60” Square Drive Heavy Duty Shaft & Sheath,, SXR Metal Foot Pedal Speed Control, #44HT Handpiece and More

  • $540.11
  • Save $95



Prepackaged Tool Kits contain just about everything you need to get to work- motor, speed control, handpiece and accessories. They take the guesswork out of product selection, offer the best value, and feature smart tool combinations for specific applications.

Motor and Speed Control carry a 2 Year Limited Warranty.

Components:
1. Series TXH Motor:

This heavy duty model has exactly the same motor specifications as the M.TX. Series TX motors are Foredoms most powerful flex shaft machines with 1/3HP. They have permanent magnet DC motors that feature the latest in flex shaft technology. These ball bearing models utilize advanced rare earth magnets (in place of the wound fields in our universal type Series SR motors) that deliver more torque at the low end and throughout the entire speed range of 500 to 15,000 RPM.

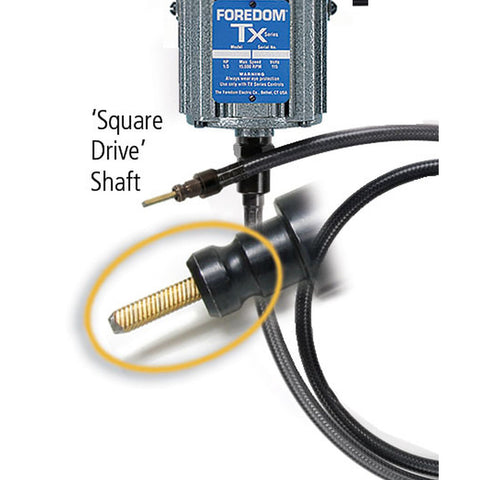

This model comes equipped with a motor bale for hanging, and a 63” long, square drive shaft and heavy duty protective sheath in place of the standard key-tip shaft and sheath. Square drive shafting can ONLY work with Foredom's four square drive handpieces- the H.25H, H.30H, H.44HT and new H.28H. Heavy duty flex shafts are the ultimate power tools for deburring, buffing, grinding, polishing and metal finishing of any kind with larger rotary accessories. They are great for large scale woodcarving and sculpting applications with carbide or steel burs and larger mounted grinding stones.
Foredoms permanent magnet motors require the use of a C.TXR, C.SXR, or C.EMX speed control. Damage will result if the motor is connected to any other speed control.
2. C.SXR Speed Control:
The C.SXR looks the same as our standard metal foot operated control but it has special electronics that converts AC current from an electrical outlet to DC current, the type required by Series TX motors. This control also has a different style plug that is made to fit the motor's shielded-type plug. The C.SXR features solid state circuitry in a cast iron housing. The added weight eliminates any unexpected movement of the control along the floor. The bottom surface of the speed control is covered with non-skid material. CSA listed. 6-3/4” long, 4” wide, 2-3/8” high, ship wt. 6 lbs./2.7 kg.
3. H.44HT Handpiece: This special square drive, collet style handpiece is for exclusive use with our Series TXH, SRH and LXH heavy duty flex shafts. It comes with 3/32”, 1/8” and 1/4” collets. The tapered design allows for close and safe work. This handpiece is specialized and is NOT a member of the Foredom system of ”interchangeable” handpieces.
4. AKHK25: This 10-pc Accessory Kit includes 2 Ceram Cut Blue stones, 1 Carbide Bur, 1-1/2” Cut-Off Wheel, 2 Rubber Bonded Abrasive 7/8” Wheels, 2” Wire Brush and 3 mandrels. All with 1/8” shanks.
5. Flexible shaft grease and spare motor brushes.

SHIPPING METHOD: This item must ship via UPS. During the checkout process you may be offered Priority Mail but this item must ship via UPS. If you select Priority Mail, it will only slow down the process as we will have to change the shipping method after the fact and charge the difference. We have learned the hard way to not ship fragile or high value items via Priority Mail.

,

Check Out The Foredom Tools Catalog

Foredom Kits and Their Components

SKU: FOR-K.TXH440
UPC: 098666004401
Brand: Foredom
MPN: K.TXH440
Made In: United States

Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
