Jumbo Work Chamber w/Light
Semi-enclosed, substantial sheet metal unit keeps dust and debris under control. Ideal for small to medium workpieces. Use with MADC20 or other Dust Collector. Universal Voltage controls light, switch. See Product Options for North American and 230V Plugs
Use Product Options Menu to Select Plug Options for LED light and Remote Switch: MALC30 (115V Domestic, North American Plug), MALC30-21 (230V UK Plug, CE), MALC30-22 (230V Continental European Plug, CE), MALC30-26 (230V Australian Plug), MALC30-32 (230V Israeli Plug), MALC30-33 (115V Brazilian Plug), MALC30-34 (230V Brazilian Plug)

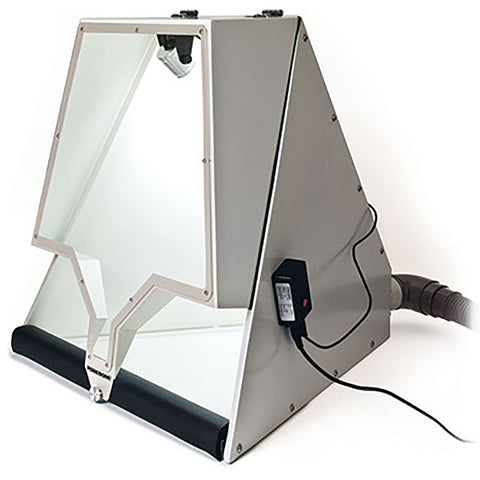

Foredom's MALC30 Jumbo Work Chamber is a semi-enclosed, substantial sheet metal unit designed for use with our new MADC20 Dust Collector or other dust collection system. It comes with a bright LED light that can be moved around and made to stay in place with its magnetic base. The Chamber is a great addition to the benches of woodcarvers and fabricators of all kinds working with small to medium size workpieces. Chamber keeps dust and debris contained when grinding, sanding, polishing and drilling. It’s shield and LED Light offer excellent visibility and well-designed arm openings and padded arm rest provide full range of motion and comfort. Chamber comes disassembled but is easy to build with just a phillips screwdriver.

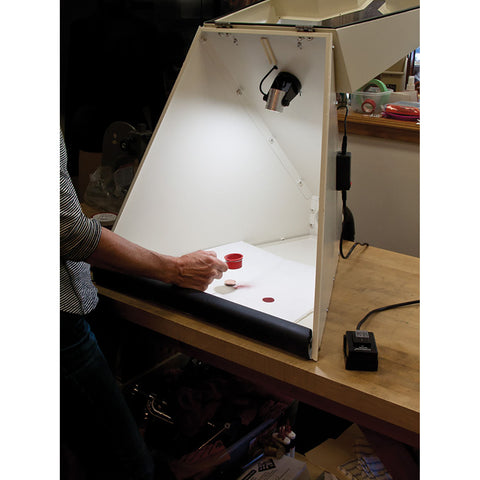

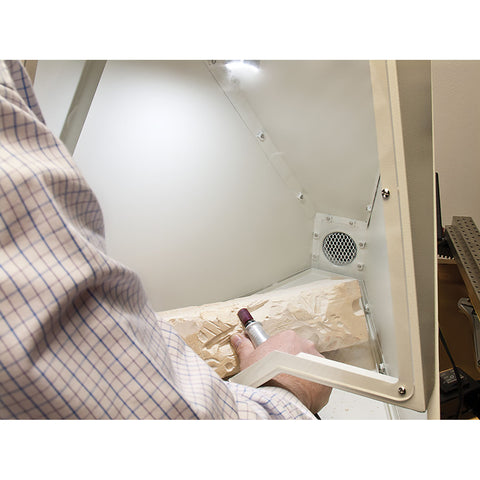

The Jumbo Chamber is great for many woodcarving projects from hogging out blocks of wood to delicate detailing. It’s removable tray makes for easy clean up of large debris. Unit also ideal for sifting enamel with the shield up and the MADC20 Dust Collector set at low to med vacuum speeds. See additional photos.

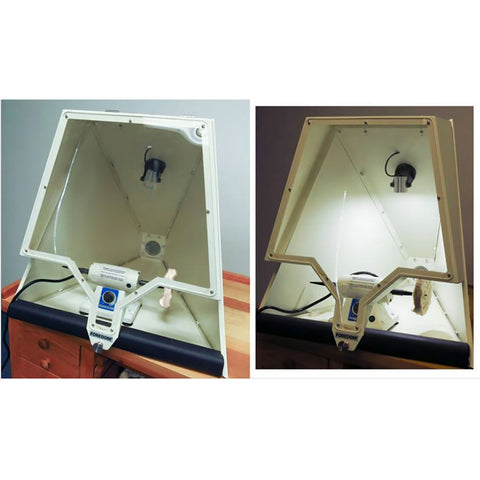

LED Light: Super bright, 200 lumen daylight quality 5-bulb fixture tilts on its magnetic base to focus light where needed. Has Magnetic On/Off remote switch box for positioning in convenient location on outer wall.
Vacuum Port and Elbow: Supplied Elbow fits a 2-14 diameter hose for right or left sided hook up to the MADC20 Dust Collector, shop vacuum or other dust collection system.
Shield Acrylic: has ample cut-outs for easy access and movement of arms inside the chamber. Shield is hinged at the top and magnetically secured with knob at the bottom.
Padded Wrist Rest: Padded rest provides added comfort while working.
Universal Voltage: 115V or 230V, controls LED Light and Remote Switch.
Height: 21 Width: 22-3/4 at bottom, 12-5/8 at top Depth: 23 including hose port in back
Height: 20-1/2 at front, 4-3/4 at back Width: 20 at front, 3-3/4 at back
Depth: 20-1/4 at front, 19-1/2 at center front to back
Weight: 19 lb including light
Shipping Weight: 26-1/4 lb
Two-Year Limited Warranty (excluding shield).
