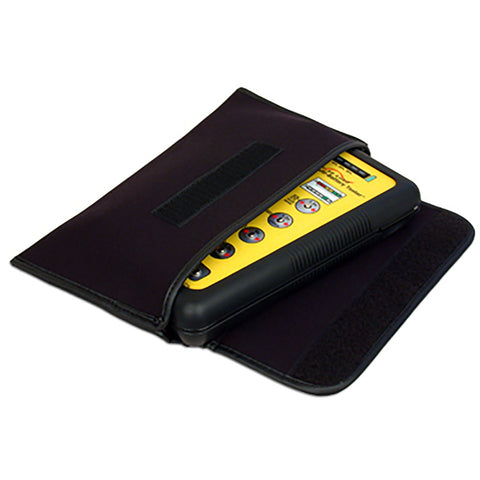

The ZTS Multi-Battery Tester With Case

$100.00
Save $10

Easy to use - no switches or settings
Quickly and easily identify weak or failing batteries
Patented high accuracy Pulse Load Test
Ideal for battery management and cell matching
Made in U.S.A.

The ZTS Multi-Battery Tester™(MBT-1) provides a comprehensive means of testing the state of charge or state of power for more than 40 battery types. This microprocessor-controlled instrument is designed to test popular primary (non-rechargeable) and rechargeable batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. Negative test lead/probe conveniently stores in seam at side. There are no switches or settings, and test results are easy to understand. Test NiMH, Li-Ion, alkaline, lithium, coin cell, button type and more.

Uses 4AA batteries (not included)Made in U.S.A. Patents 6,823,274 and D569285.

Battery management
Security
Industrial
Utilities
Theater / music
Electronics
Remotes / wireless
Safety
Medical appliances
Rechargeables
Military
Manufacturing
Office
Service
Scientific
Government

P/N: MBT-1

Testing capability (battery list):

3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
1.5v button cell [364, 377, 371, 392, 395, S76, A76, A625, A640, LR44, 357, 303]
1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
1.5v lithium [AA L91, AAA L92]3v lithium coin [CR1216, CR1220, CR1232, CR1612, CR1616, CR1620, CR1632, CR2016, CR2025, 58L, 1/3N][CR2032, CR2320, CR2430, CR2450]
6v '28' series [28A, S28, 28L, 544, 4LR44]
3v lithium cylindrical [CR123, CR2]
1.5v alkaline [AA, AAA, C, D, N]
12v alkaline [A23]9v alkaline & carbon zinc

Power (internal): 4 AA batteries

Display: 6 LEDs - colors green, yellow, red

Pulse Load: magnitude varies according to battery type

Operation: microprocessor-controlled test cycle

Test duration: 2-3 seconds, varies according to battery type

Contact terminals: solid brass, nickel-plated

Dimensions: 8 x 4.5 x 1.25 inches

Weight: approx. 14.5 oz. / 400g (without batteries)UPC: 856777000169

MBT-1 Data Sheet (PDF)

SKU:	MBT-1NC
Brand:	ZTS
MPN:	MBT-1NC
