Orion PJ Permanent Jewelry Welder KIT

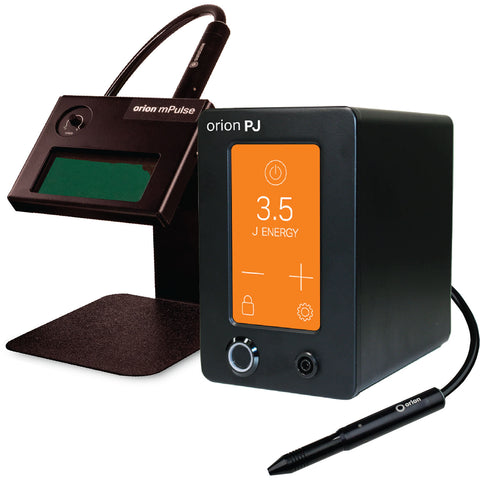

Orion™ PJ Permanent Jewelry Welder
First Ever welder designed specifically for welding permanent jewelry!
The Orion PJ was designed and built specifically for permanent jewelry artists. You won’t find any other permanent jewelry welder better fit for fine chain welding, on the go portability, and convenient cable management. The Orion PJ has the ideal energy range for permanent jewelry welding, with smart energy control, extended cable lengths, and cable management features that make working pop-up’s and other remote work areas much easier.
The Ideal Energy Range
The Orion PJ has an energy range of 1 to 15 joules. As a PJ artist, you’ll enjoy the low end of the energy range when working with very fine chain. And on the high end, you’ll feel prepared for any situation that may require more energy than usual.
Smart Energy Control
With the Orion PJ you can change the energy in half-joule increments, a highly valuable feature when working with different types of chain. Half-joule increments allow you to fine tune your energy to produce the perfect weld. For example, when 4 joules is too much energy, but 3 joules is not enough energy, being able to set the energy level at 3.5 joules will deliver just the right amount of energy for beautiful results.
- Permanent Jewelry
- Jewelry Repair
- Jewelry Creation
- Wire Beading
- 14k Gold
- Gold Filled
- Gold Plated
- Stainless Steel

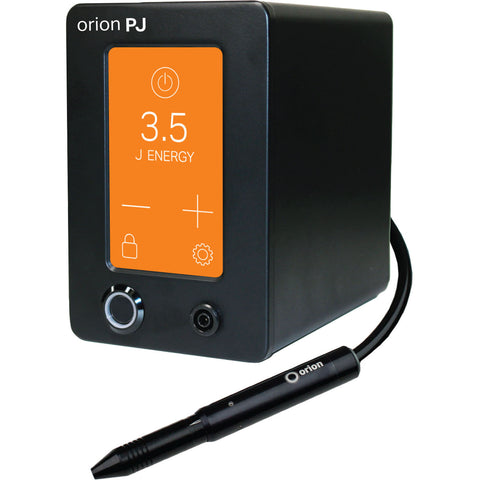

Get the perfect weld with 0.5 increment settings!
For situations when 4 joules is too much energy, but 3 joules is not enough. the Orion PJ lets you set energy at 3.5 joules for the perfect weld!
Convenient Push Cord Connection
When packing for pop-up’s and other remote events, the Orion PJ’s stylus cord completely disconnects from the power source for easier packing. With the cord unattached, the Orion PJ will fit in tight boxes.

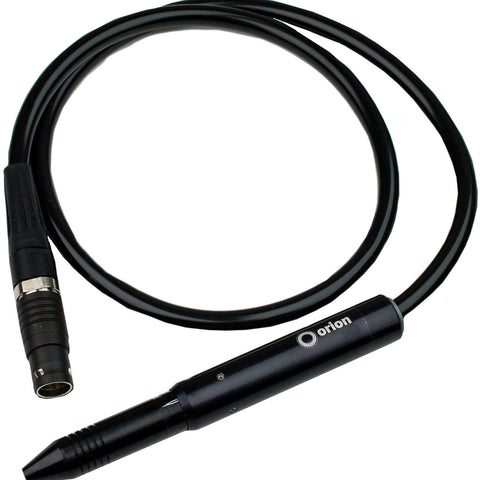

Longer Stylus Cord
For anklets, a longer stylus cord simplifies the effort needed to reach a customer’s ankle. The Orion PJ comes standard with a 3.5 foot stylus cord. Moreover, you can purchase a stylus extension that will let you extend the electrode an additional 3 or 6 feet from the power source.
Longer Grounding Cord
Complimenting the longer stylus cord is a longer grounding cord. For those times when you need to stretch to reach an ankle, a longer grounding cord comes in handy!

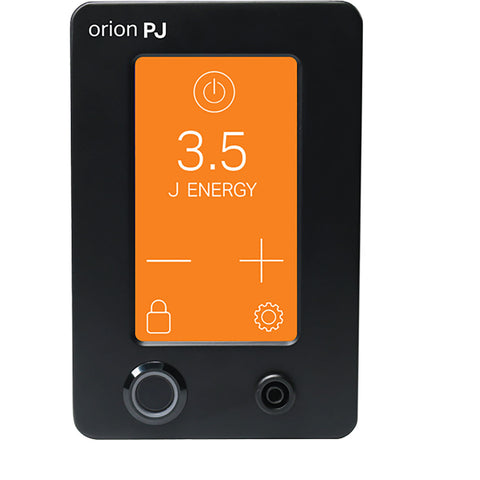

Digital Touchscreen Control
The hallmark of every Orion welder is digital control of the welder’s various features. The Orion PJ is no exception, sporting a 272 x 480 pixel (2.83 x 5 inches), bright touchscreen. With a quick touch of the finger you’ll be able to control all welder functions.
Safety Welder Locks
The Orion PJ comes with two safety features to prevent accidental energy discharge. The Weld On/Weld Off button is your primary safety feature; you cannot weld when the button is off. The Lock button will allow you to weld but won’t allow energy changes to be made while the button is the lock mode.
Custom Software Background
Permanent jewelry artists can customize the Orion PJ’s software to match their brand. With a quick touch of a button, you can choose from nine different background colors to suit your style. The default orange is our favorite, of course, but now you can customize the background to fit your mood!
Personalize your welder with 9 different color options!
Extended stylus cord with push connection!
|PEAK POWER (J)||15 J|
|ENERGY (J)||1-15 J|
|WELD SPOT DIAMETER||0.5 - 1.5 mm|
|DISPLAY||272 x 480 pixel Touchscreen TFT LCD|
|DARKENING SHUTTER VISIBILITY||Shade 3 to Shade 11|
|INPUT POWER||100/230 VAC (Auto Detect)|
|FOOTPRINT (LXWXH)||6.08 x 2.15 x 5.91 inches|
|WEIGHT||2.45 pounds (1.11 kg)|
|EYE PROTECTION||Auto Darkening|
- Upgraded Green ADL

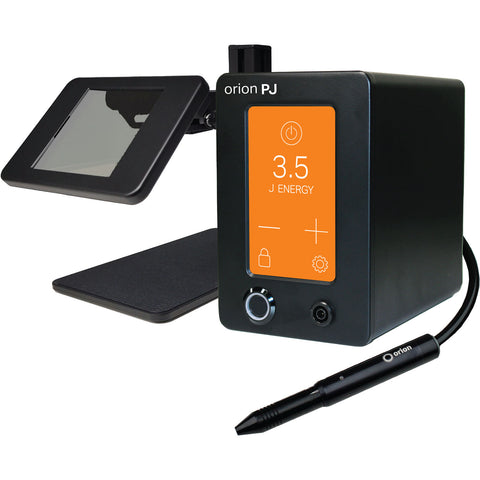

- Upgraded Clear ADL (Newest)
The lens is positioned between you and the stylus and automatically darkens the lens during the duration of the weld. You'll hardly notice the lens when it goes dark because the weld duration is so quick. The lens assembly includes a holder for the stylus. You'll significantly increase comfort levels when you employ the Orion lens upgrade!
Are You a Permanent Jewelry Artist? Then you'll want the upgraded auto-darkening lens for the additional space it provides between the lens and your customer's wrist or ankle.
- PJ Scope

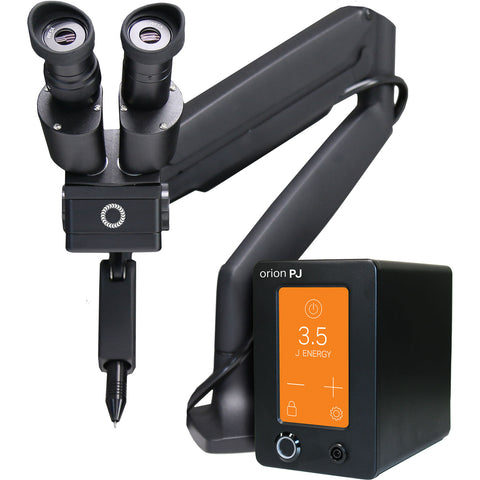

- Orion Arm Microscope
The microscope portion of both of these is the exact same. The difference is tabletop mounting versused a swing arm mount.
The Orion Microscope on Articulating Arm is a great product for stone setting and intricate jeweler work. This microscope system should not be used for welding unless it is hooked up to an Orion welder. An Orion welder includes software that tells the built-in shutter when to close in order to protect the users’ eyes from the weld flash.

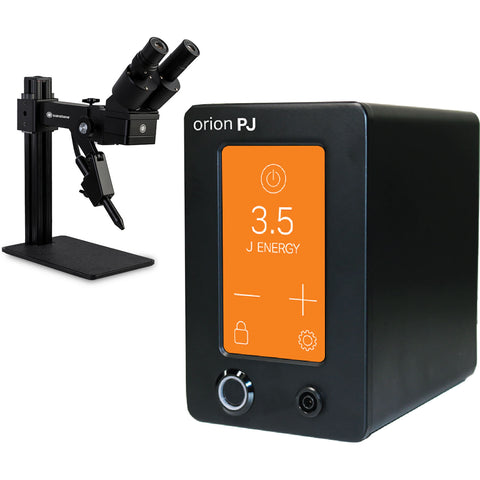

The PJ Scope from Sunstone is a self-standing, easy-to-transport microscope that pairs with the Orion PJ, Orion mPulse, or Zapp permanent jewelry welders. The PJ Scope combines a self-standing, sturdy base with an Orion microscope, helping every permanent jewelry artist clearly view and close jump rings or fine chain.
- Premium 5x magnification optics help you see every chain and boosts welding confidence.
- Automated optical shutter blocks harmful weld flash.
- Self-standing base—no table clamp required!
- Soft rubber eye pads provide hours of comfortable viewing.
- Bright LED lighting floods the chain for better viewing.
- Light and portable and ready for any pop-up.
- Reduces bad welds and improves customer satisfaction.
- Connects with Orion PJ, Orion mPulse, Zapp permanent jewelry welders.
Boost Welding Confidence
The PJ Scope’s magnification helps the permanent jewelry artist easily close a chain with high confidence. When you can clearly see the jump ring and accurately place the electrode exactly where it needs to be, you'll see better, consistent welding results.. Further, when connected to an Orion PJ, Orion mPulse, or Zapp permanent jewelry welder, the PJ Scope’s shutter will automatically close and shield the artist from harmful IR light.
Portable and Perfect for Pop-up's
Weighing in at 7.15 lbs, the PJ Scope can be easily carried from one pop-up event to another, easily becoming a must-have tool for every permanent jewelry business. With a 10 x 6 inch base, the PJ Scope doesn’t require a clamp or hole in the table and can be quickly positioned and repositioned on any table or stand.
Quick and Easy Setup
Setup is quick and easy. Simply position the PJ Scope on a table where it is easily accessible to the artist and the customer. Connect the PJ Scope with an Orion or Zapp permanent jewelry welder. Place the stylus in the PJ Scope’s stylus holder. Then use the PJ Scope’s optics to position the chain and complete the weld.

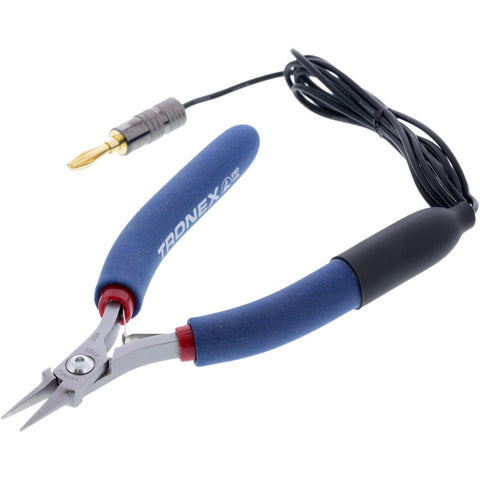

FREE Grounded Tronex Precision P723 Pliers
Grounded Tronex Precision P723 Pliers for Orion, PUK & Unbranded permanent jewelry welders. Used for grounding chain in order to close a link. Most permanent jewelry welders come standard with alligator clips for grounding. Pliers make the task of welding permanent jewelry faster and they give you better control. Use these precision pliers to achieve a better grasp of one link of fine chain.
- Premium grade precision pliers
- Long Ergonomic Handle
- 1mm wide tip for better handling
- Banana connector keeps the pliers connected securely to the welder
- Banana connector is removable if you desire a shorter cord
- 5' of grounding cable giving you more flexibility
- 18 AWG High Quality Ultra Flexible Soft Silicone Rubber Copper Wire
- Wire permanently attached to pliers
- Made in USA

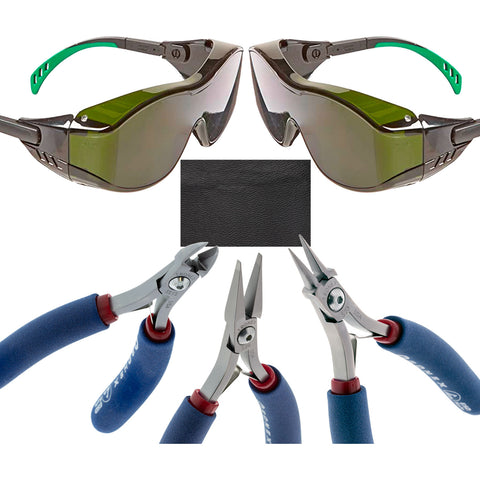

FREE Premium Quality Permanent Jewelry Tool Kit
This Premium Quality Permanent Jewelry Tool Kit comes with some of the best quality precision pliers & cutters that money can buy. Tronex precision tools are proudly made in the USA. These kits come with either the standard-length handle or the longer ergonomic handle.
The kit includes:
- Tronex - P723G • Grounded Needle Nose Pliers, Short 1mm Wide Tip
- Tronex - P748 • Flat Nose Pliers, Narrow 2mm Wide Tip
- Tronex - 7512 • Flush Oval Head Cutters, Large
- 2 - Pair of Welding Glasses - Cover2 IR OTG Safety Glasses 6966 Black Temples, IR Filter Shade 5.0 Lens
- Safety Leather
Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
