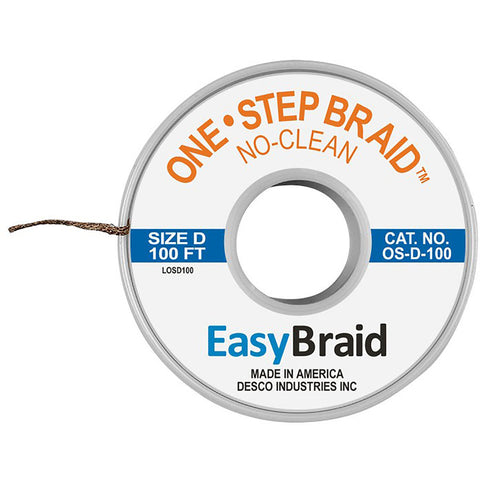

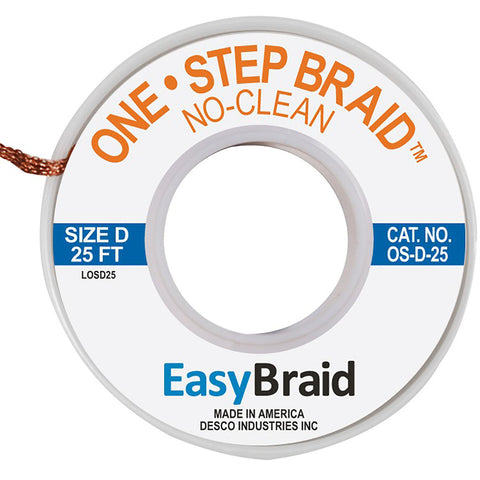

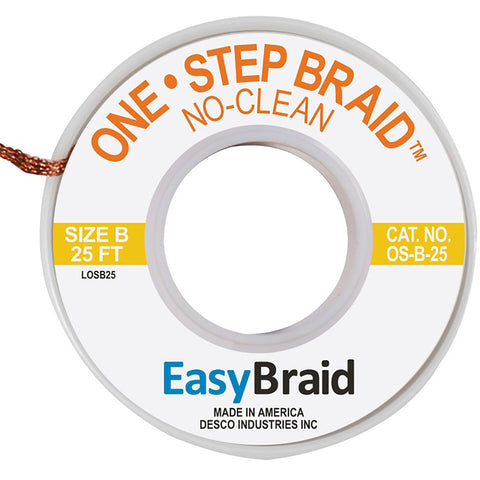

EasyBraid - Desoldering Braid, One Step, 0.025" - 0.125"

  • $63.36
  • Save $7.04



Features:

  • Used in the rework and repair of printed circuit boards, computers, cell phones, or other electronics

  • Easily removes solder from components or pads on a circuit board

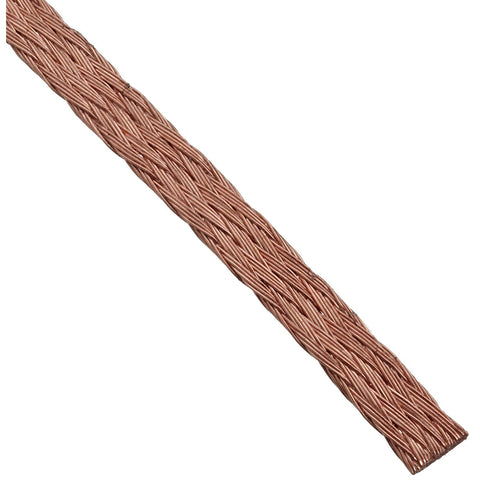

  • Concentrated fine copper braiding utilizes less length of wick for each desoldering application

  • Made of clean, oxide-free copper wire

  • Tight weave enables quick “on and off” desoldering

  • Flux residue on board does not need to be cleaned

  • To be used in conjunction with processes using RMA type no-clean fluxes

  • 5’ and 10’ lengths available on static dissipative bobbins in compliance with ESD Association Standard

  • Uses flux classification type L0 per IPC J-STD-004B

Wire Specifications:

Wire Type

Width

Configuration

A Wire

0.025” (±0.003”)

.635mm (±0.08mm)

2 strands of 42awg X 16 (total 32 strands), 31 PPI

B Wire

0.050” (±0.004”)

1.27mm (±0.10mm)

4 strands of 42awg X 16 (total 64 strands), 12.5 PPI

C Wire

0.075” (±0.005”)

1.90mm (±0.13mm)

6 strands of 42awg X 16 (total 96 strands), 16 PPI

D Wire

0.095” (±0.007”)

2.41mm (±0.18mm)

5 strands of 42awg X 24 (120 total strands), 19 PPI

E Wire

0.117” (±0.008”)

2.97mm (±0.20mm)

5 strands of 40awg X 24 (120 total strands), 16 PPI

Bobbin Identification:

Width

Color Code

Letter Signifier

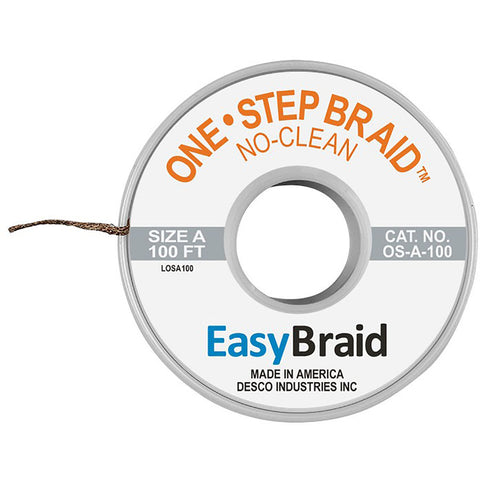

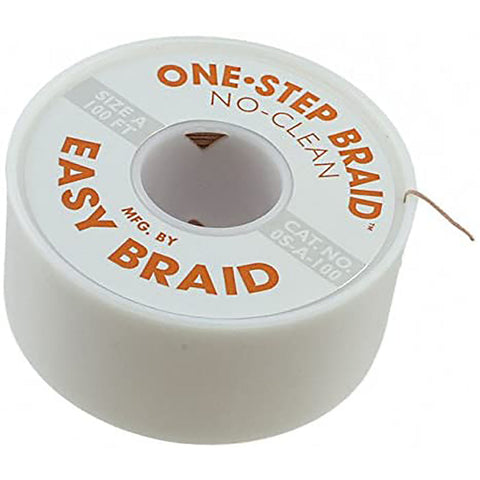

.025”

Gray

A

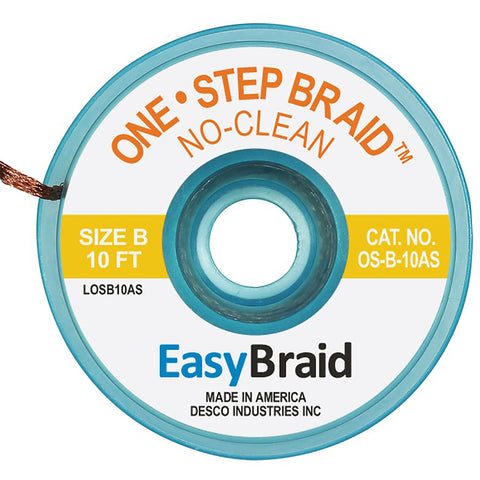

.050”

Yellow

B

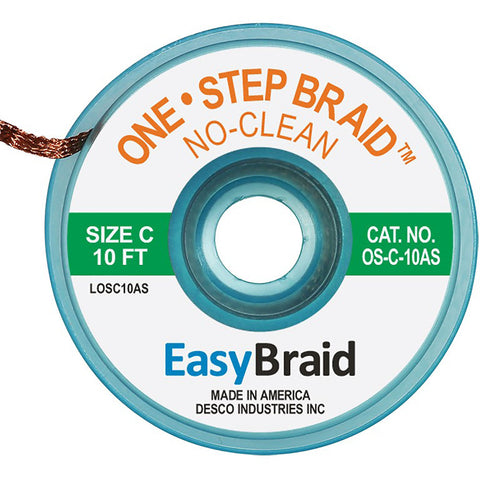

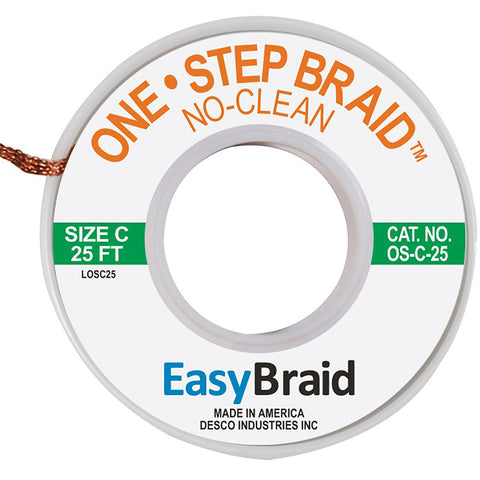

.075”

Green

C

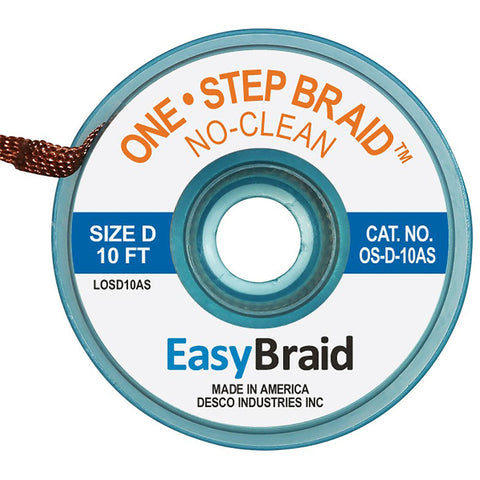

.100”

Blue

D

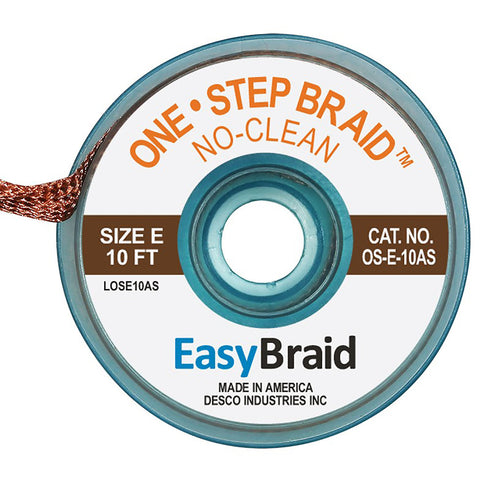

.125”

Brown

E

SKU: OS-A-100
UPC: 196943985044
Brand: EasyBraid
MPN: OS-A-100
Made In: United States

Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
