Tronex Medium Taper Relieved Head Cutters - Semi-Flush Flush and Razor Flush

Reach soft copper wire beneath components and around obstructions with a pointed cutting head and a relieved, low-profile design. These medium taper head cutters combine a narrow approach with additional clearance for cutting points that can be difficult to reach with a standard-profile head.

Choose Semi-Flush edges when cutting-edge durability is the priority, Flush edges for close cuts with a slight pinch, or Razor Flush edges for a nearly flat wire end. Each cutting finish is available with standard handles or long ergonomic handles, giving you six options to match your work and grip preference.

All six models are manufactured in the USA from carbon steel and feature double-sheathed, ESD-safe cushioned grips. Select the cutting style according to the finish you need and the diameter of your soft copper wire.

Features and Benefits

• Pointed Taper Head: Improves access around closely spaced components and into confined cutting areas.

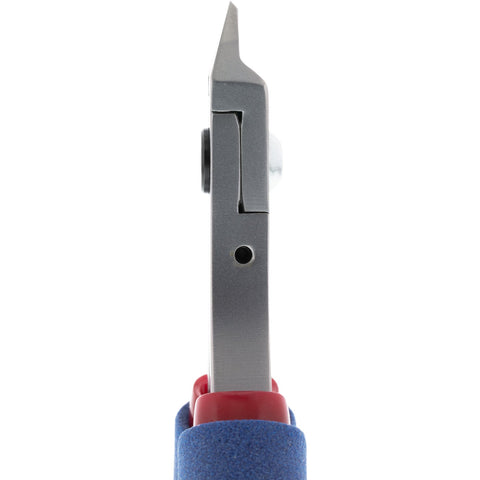

• Relieved Head Profile: Provides additional clearance beneath components and around obstructions.

• Three Cutting Finishes: Choose Semi-Flush, Flush, or Razor Flush edges to suit your cutting requirements.

• Two Handle Options: Standard handles provide a more compact tool, while long ergonomic handles offer a larger gripping area.

• ESD-Safe Cushion Grips: Double-sheathed grips provide cushioned handling for detailed work in static-sensitive environments.

• Razor Flush Edge Protection: The 5223 and 7223 include a built-in set screw stop to help protect their precision cutting edges.

Available Variants

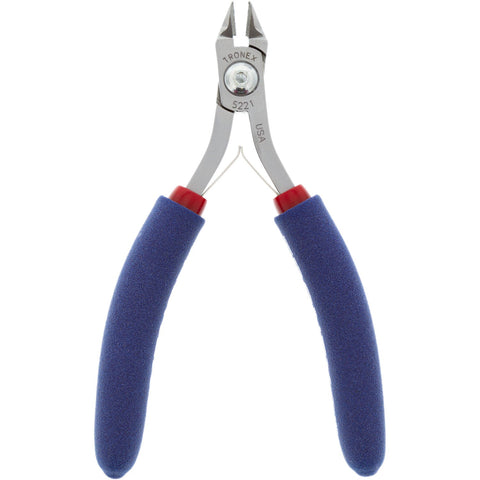

Tronex 5221 - Semi-Flush with Standard Handles

Combines a medium taper relieved head with a durable Semi-Flush edge. A small cutting bevel leaves a noticeable pinch on the wire end. Measures 4.6 inches overall.

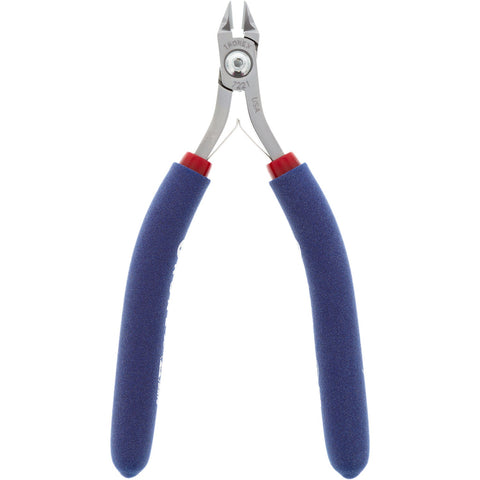

Tronex 7221 - Semi-Flush with Long Ergonomic Handles

Provides the same Semi-Flush cutting edges and soft copper wire capacity as the 5221, with longer ergonomic handles for a larger gripping area. Measures 5.6 inches overall.

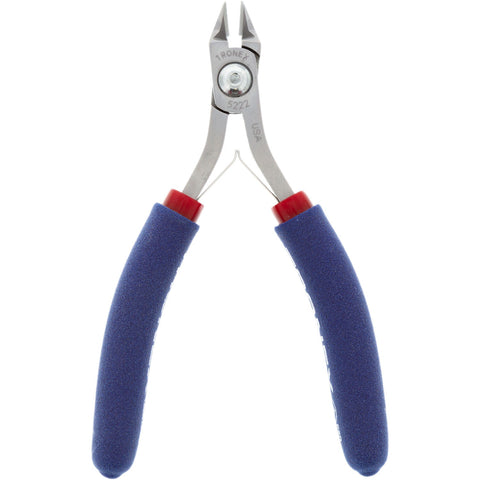

Tronex 5222 - Flush with Standard Handles

Balances close-cutting performance with edge durability. The thin cutting bevel leaves only a small pinch on the wire end. Measures 4.6 inches overall.

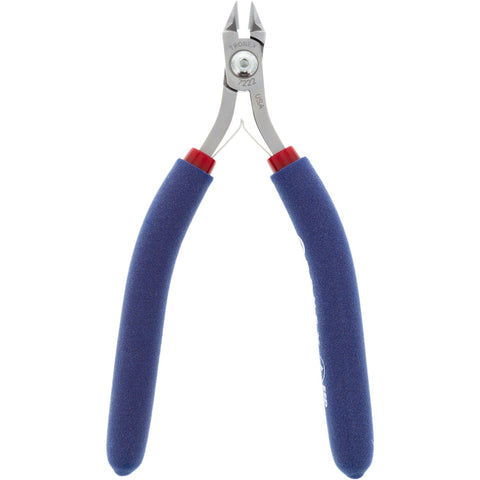

Tronex 7222 - Flush with Long Ergonomic Handles

Features the same relieved head, Flush cutting edges, and soft copper wire capacity as the 5222, with longer ergonomic handles. Measures 5.6 inches overall.

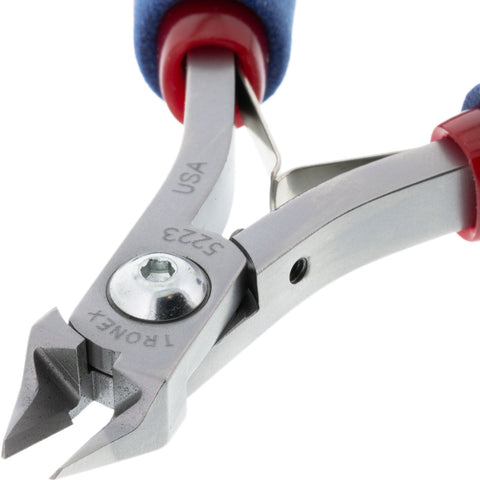

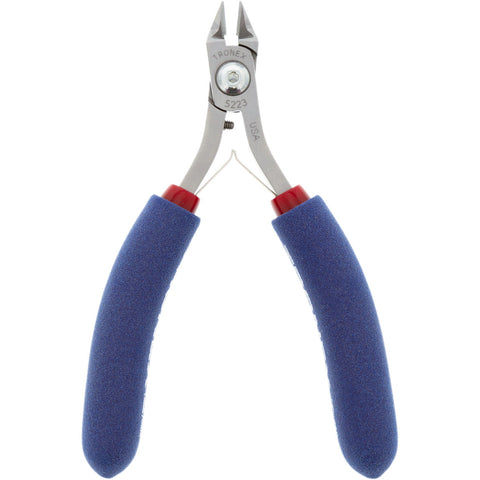

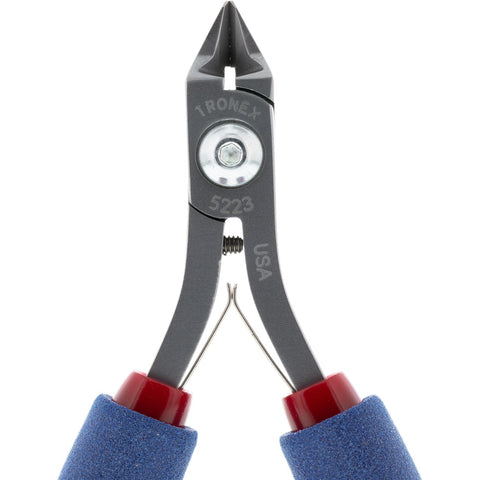

Tronex 5223 - Razor Flush with Standard Handles

Features bevel-free cutting edges for a nearly flat wire end with virtually no raised material. Standard-length handles provide a compact tool measuring 4.6 inches overall.

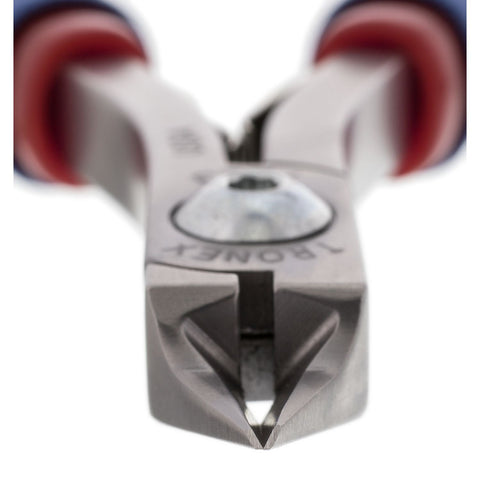

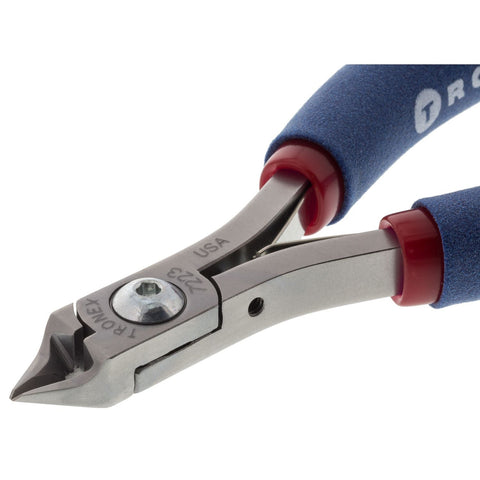

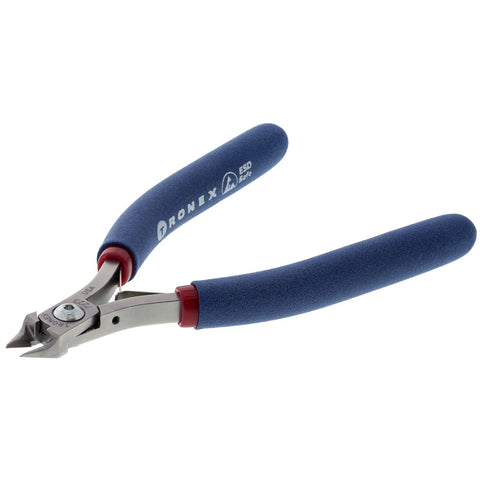

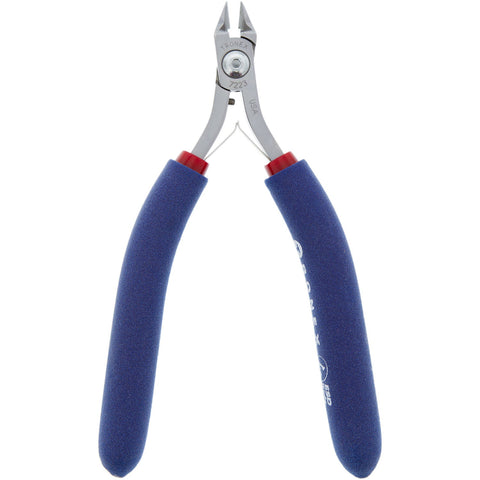

Tronex 7223 - Razor Flush with Long Ergonomic Handles

Combines the same relieved head, Razor Flush cutting edges, and soft copper wire capacity as the 5223 with longer ergonomic handles. Measures 5.6 inches overall.

Select your preferred cutting finish and handle style from the available options. Each model is sold individually.

Cutting Capacities

5221 and 7221 - Semi-Flush

• Wire Material: Soft Copper

• Wire Diameter: 0.008 to 0.045 inch

• Metric Capacity: 0.2 to 1.15mm

5222 and 7222 - Flush

• Wire Material: Soft Copper

• Wire Diameter: 0.004 to 0.041 inch

• Metric Capacity: 0.1 to 1.05mm

5223 and 7223 - Razor Flush

• Wire Material: Soft Copper

• Wire Diameter: 0.004 to 0.035 inch

• Metric Capacity: 0.1 to 0.9mm

All cutting capacities apply to soft copper wire. Stay within the selected model's specified diameter range and use a cutter specifically rated for harder materials.

Specifications

• Brand: Tronex

• Models: 5221, 7221, 5222, 7222, 5223, and 7223

• Tool Type: Medium Taper Head Wire Cutter

• Head Shape: Pointed Taper

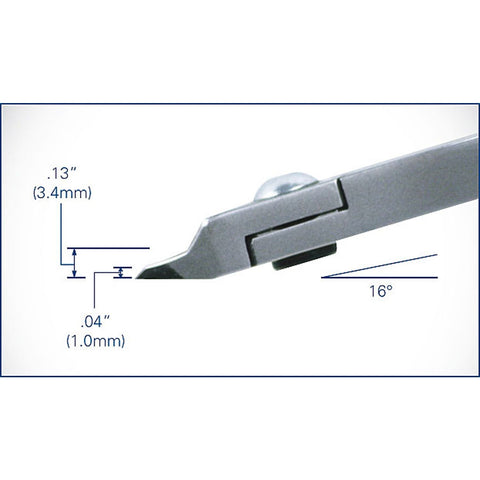

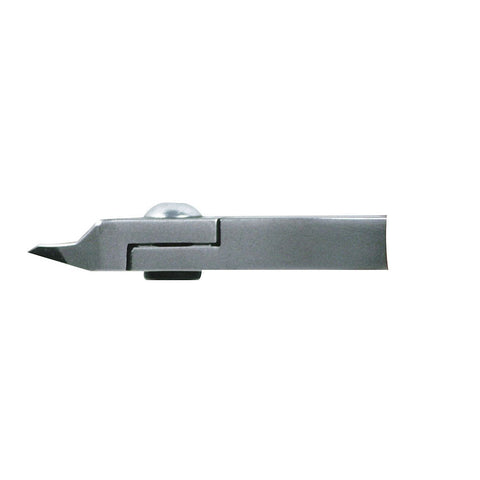

• Head Profile: Relieved

• Cutting Edge Options: Semi-Flush, Flush, and Razor Flush

• Material: Carbon Steel

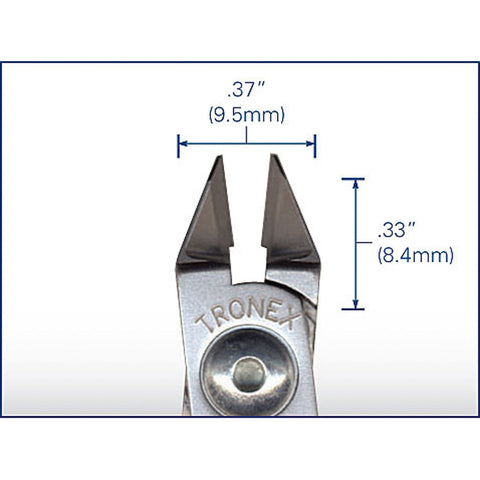

• Tip Length: 0.45 inch or approximately 11mm

• Standard Handle Models: 5221, 5222, and 5223

• Standard Handle Overall Length: 4.6 inches or 117mm

• Long Ergonomic Handle Models: 7221, 7222, and 7223

• Long Handle Overall Length: 5.6 inches or 142mm

• Grip Type: Double-Sheathed ESD-Safe Cushion Grips

• Package Quantity: One Selected Cutter

• Country of Manufacture: USA

Applications

Suitable for electronics assembly, precision soft copper wire trimming, and jewelry projects using soft copper wire within the selected model's capacity. The pointed, relieved head is particularly useful when nearby components or overhanging parts restrict access to the cutting point.

Frequently Asked Questions

Which models are available?

The six options are the 5221 and 7221 Semi-Flush cutters, 5222 and 7222 Flush cutters, and 5223 and 7223 Razor Flush cutters. Models beginning with 5 have standard handles; models beginning with 7 have long ergonomic handles.

What does a relieved head do?

A relieved head has a lower profile that provides additional clearance around obstructions and beneath components. It helps reach cutting points that may be difficult to access with a standard-profile head.

What is the difference between Semi-Flush, Flush, and Razor Flush?

Semi-Flush edges prioritize durability but leave a noticeable pinch on the wire end. Flush edges leave a smaller pinch. Razor Flush edges have no bevel and leave virtually no raised material.

Do all six models have the same cutting capacity?

No. The Semi-Flush models are rated for 0.008 to 0.045 inch soft copper wire, the Flush models for 0.004 to 0.041 inch, and the Razor Flush models for 0.004 to 0.035 inch.

Does choosing longer handles increase cutting capacity?

No. Each long-handle model has the same rated capacity as its corresponding standard-handle model. Choose the handle length based on your hand size and grip preference.

Can these cutters be used on steel or memory wire?

The stated capacities apply only to soft copper wire. They do not establish suitability for steel, memory wire, or other harder materials. Use a cutter specifically rated for the material and diameter you intend to cut.

Are all six models ESD safe?

Yes. All six models have double-sheathed, ESD-safe cushioned grips.

Where are these cutters manufactured?

All six models are manufactured in the USA.

Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.

All Cutting Capacity Ratings are for soft copper wire.
