Taper Head Cutters, Miniature
Miniature Taper Head Cutters are used only for exceptionally fine cutting work when access to the cutting area is difficult. Tapered head allows for access into tight areas.

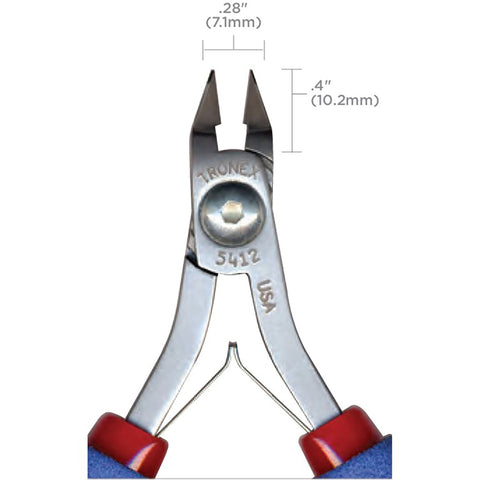

541X • Overall Length: 4.6” (117mm) - Tip Length: .4” (10mm)

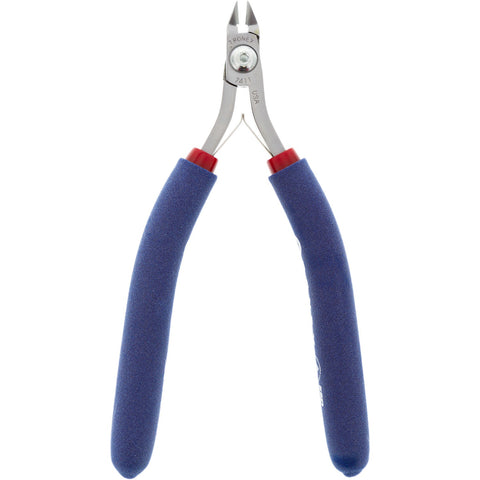

741X • Overall Length: 5.6” (142mm) - Tip Length: .4” (10mm)
Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.
All Cutting Capacity Ratings are for soft copper wire.
|
Model |
Cut | Inch | MM | AWG |

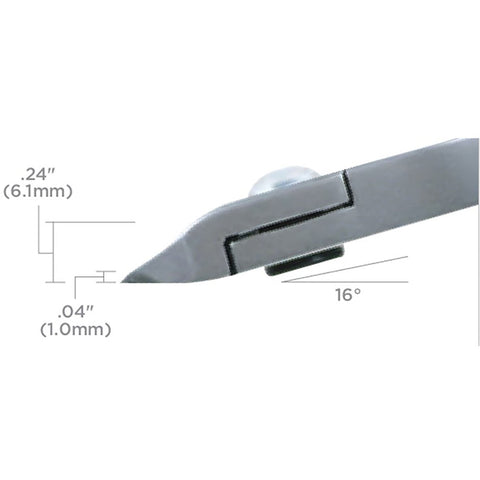

| 5411/7411 | Semi-Flush | .008"-.049" | 0.2-1.25mm | 32-16 |

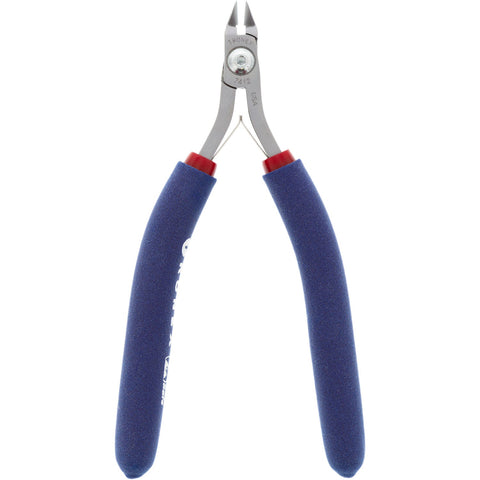

| 5412/7412 | Flush | .004"-.049" | 0.1-1.25mm | 38-18 |

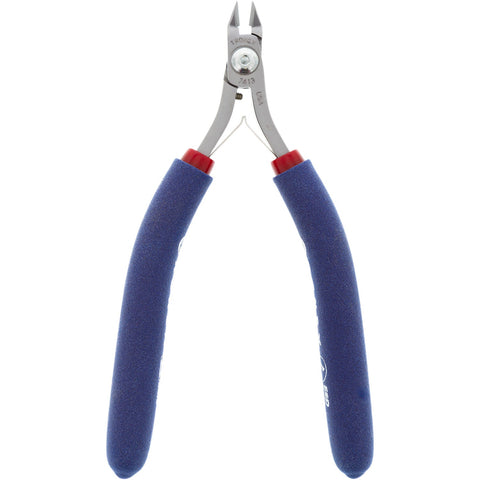

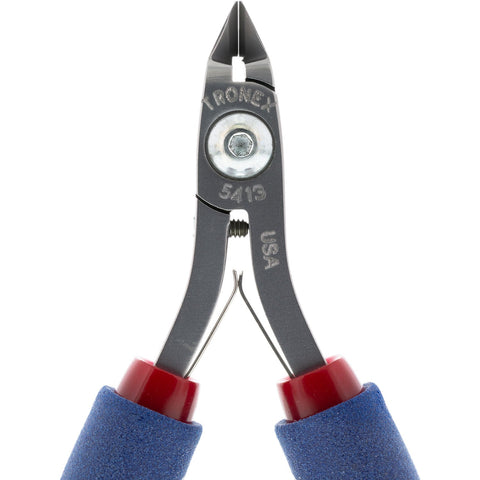

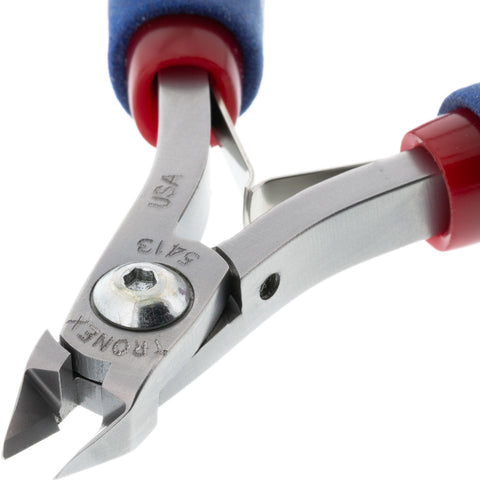

| 5413/7413 | Razor Flush | .004"-.031" | 0.1-.8mm | 38-20 |
