Tronex 90 Degree Angulated Flush Tip Cutters - 5074 and 7074

Reach fine wire in crowded assemblies with a 90-degree angled head and long, narrow jaws. Miniature opposing cutting edges at the very tips allow precise positioning in confined areas where broader cutter heads can limit access.

Flush cutting edges feature a very small bevel that leaves only a slight pinch on the cut end. This design provides close-cutting performance for detailed electronics assembly, precision repairs, and jewelry tasks involving soft copper wire within the specified capacity.

Choose standard handles for a more compact tool or long ergonomic handles for a larger gripping area. Both models are manufactured in the USA from hardened carbon steel and feature double-sheathed, ESD-safe cushioned grips.

Features and Benefits

• 90-Degree Angled Head: Provides a different approach to cutting points when nearby components restrict access.

• Long, Narrow Jaws: Extend into confined work areas without the bulk of a wider cutting head.

• Miniature Tip Cutting Edges: Place the cutting action at the ends of the jaws for precise positioning.

• Flush Cutting Edges: Produce close cuts with only a slight pinch remaining on the wire end.

• ESD-Safe Cushion Grips: Double-sheathed grips provide cushioned handling for detailed work in static-sensitive environments.

• Two Handle Options: Choose standard or long ergonomic handles to suit your grip preference.

Available Variants

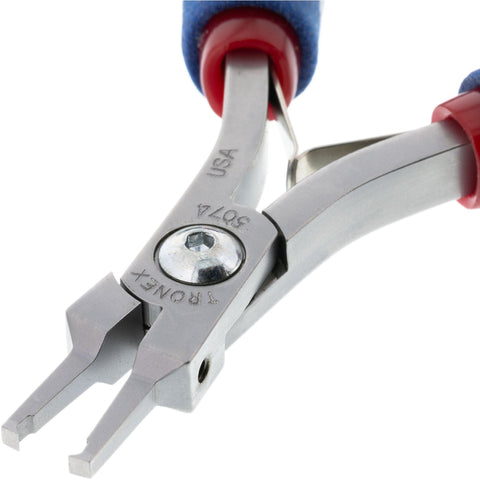

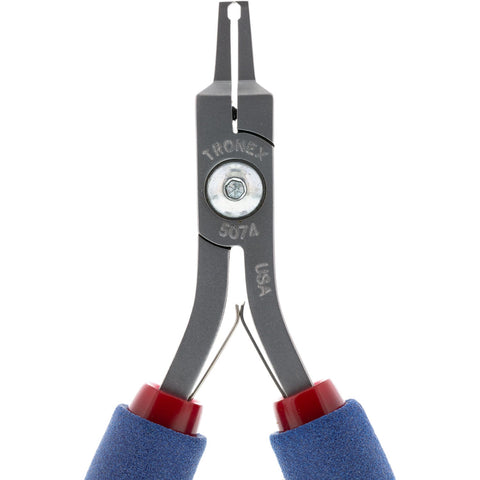

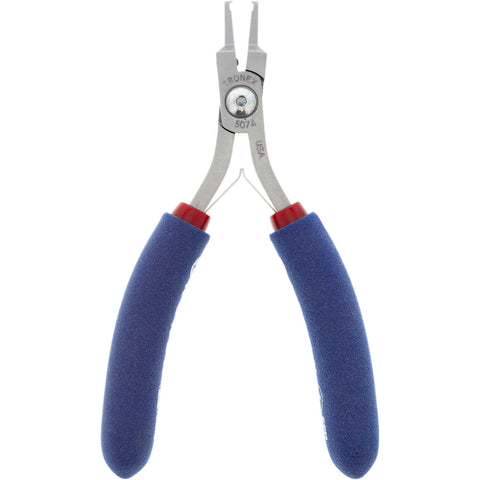

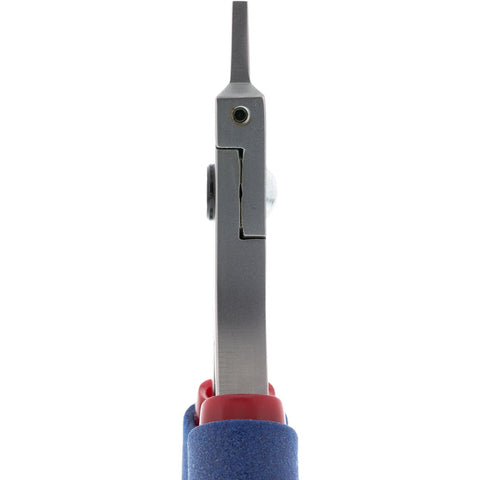

Tronex 5074 - Standard Handles

Measures 4.9 inches overall and features standard-length handles. This is the more compact option for users who prefer a shorter tool.

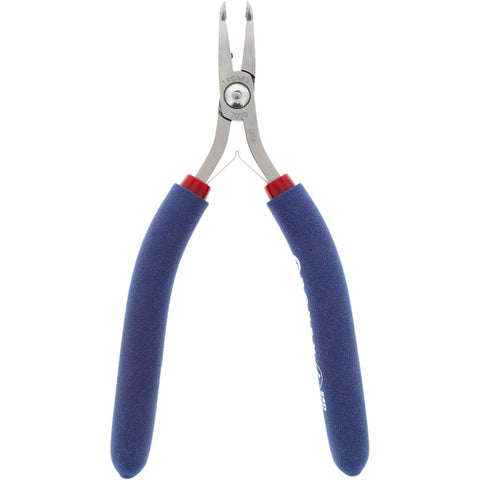

Tronex 7074 - Long Ergonomic Handles

Measures 5.9 inches overall and features longer ergonomic handles. The extended handles provide a larger gripping area and help distribute cutting pressure across the hand.

Both models have the same 90-degree miniature cutting head, Flush cutting edges, and soft copper wire capacity. Select your preferred handle style from the available options.

Specifications

• Brand: Tronex

• Models: 5074 and 7074

• Tool Type: Angulated Tip Cutter

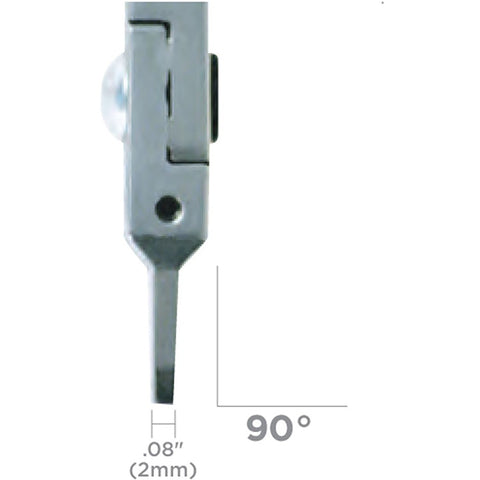

• Head Angle: 90 Degrees

• Head Style: Miniature with Long, Narrow Jaws

• Cutting Edge: Flush

• Material: Hardened Carbon Steel

• Material Hardness: 62 to 63 HRC

• Tip Length: 0.73 inch or approximately 19mm

• Soft Copper Wire Capacity: 0.008 to 0.025 inch

• Metric Cutting Capacity: 0.2 to 0.65mm

• Specified Wire Gauge Range: 32 to 22 AWG

• 5074 Overall Length: 4.9 inches

• 7074 Overall Length: 5.9 inches

• Grip Type: Double-Sheathed ESD-Safe Cushion Grips

• Country of Manufacture: USA

Applications

Suitable for precision soft copper wire trimming, electronics assembly, detailed repairs, and fine jewelry work. The angled head and tip-positioned cutting edges are particularly useful when surrounding components limit access.

All cutting capacities apply to soft copper wire. Stay within the specified capacity and use a cutter specifically rated for harder materials.

Frequently Asked Questions

What is the difference between the 5074 and 7074?

The 5074 has standard handles and measures 4.9 inches overall. The 7074 has long ergonomic handles and measures 5.9 inches overall. Both models have the same cutting head, Flush edges, and soft copper wire capacity.

What is the advantage of the 90-degree angled head?

The angled head lets you approach a cutting point from a different direction, helping you reach wires when nearby components make a conventional cutter difficult to position.

What makes these tip cutters different from standard diagonal cutters?

These cutters have long, narrow jaws with miniature cutting edges at the very ends. This arrangement provides access to confined cutting points that may be difficult to reach with broader diagonal cutter heads.

What wire sizes can these cutters handle?

Both models are rated for soft copper wire from 0.008 to 0.025 inch in diameter, approximately 0.2 to 0.65mm. The specified wire gauge range is 32 to 22 AWG.

Are these Flush or Razor Flush cutters?

Both models have Flush cutting edges. A very small bevel leaves a slight pinch on the cut end. Razor Flush edges have no bevel and leave virtually no raised material.

Can these cutters be used on steel or memory wire?

The stated cutting capacity applies only to soft copper wire. It does not establish suitability for steel, memory wire, or other harder materials. Use a cutter specifically rated for the material you intend to cut.

Are both handle options ESD safe?

Yes. Both models have double-sheathed, ESD-safe cushioned grips.

Where are these cutters manufactured?

Both the Tronex 5074 and 7074 are manufactured in the USA.

Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.

All Cutting Capacity Ratings are for soft copper wire.
