Cutters Set - Tronex 7070, 7223, 7513 & 7812 Cutters In Case (Long Ergonomic Handles)

  • $378.16

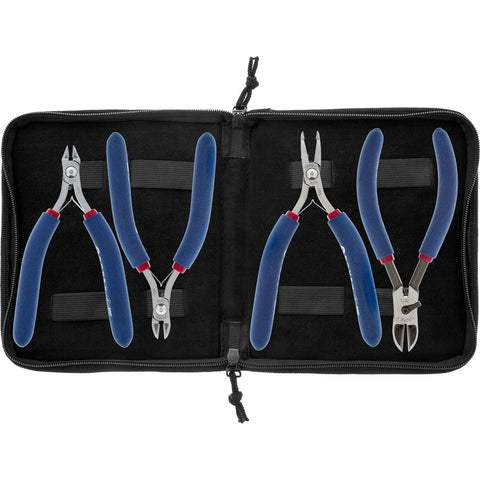

Tronex 4 Piece Cutters Set, long ergonomic handle, set contains one each of: Tronex Cutters 7070, 7223, 7513 & 7812. Cutters .

This cutters set provides you with a wide variety of cutters as the is no one cutter that will work for all jobs.

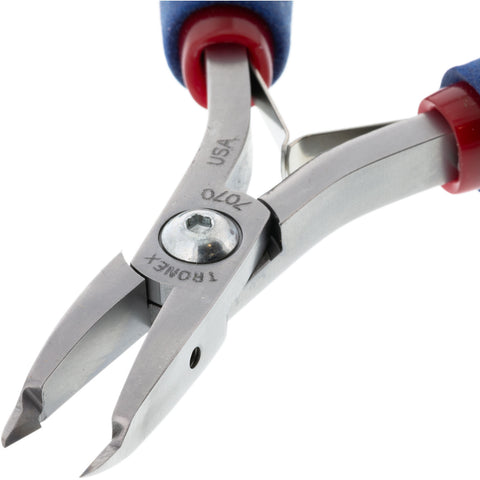

7070: Tip cutters have the cutting edge on the very tip of the jaw. This is Tronex’s most popular tip cutter. Great for headpins and getting into tight places. Overall Length: 6.1” (155mm) - Tip Length: .91” (23mm)

Cutting Capacity (rating is for soft copper wire)

Model Cut Inch MM AWG
7070 Razor Flush .004”-.031” 0.1-.8mm 38-20

7223: This Medium Taper Relieved Head Cutters is Tronex's most popular cutter. Pointed head allows for increased cutting access yet has sufficient strength to avoid tip breakage when used within its capacity
Overall Length: 5.6” (142mm) - Tip Length: .45” (11mm)

Cutting Capacity (rating is for soft copper wire)

Model Cut Inch MM AWG
7223 Razor Flush .004”-.035” 0.1-0.9mm 38-19

7513: Oval Head Cutters Large. Large Oval Head Cutters are excellent general purpose cutters. More head material for greater cutting capacity. Overall Length: 5.7” (144mm) - Tip Length: .53” (13mm)

Cutting Capacity (rating is for soft copper wire)

Model Cut Inch MM AWG
7513 Razor Flush .004”-.051” 0.1-1.3mm 38-16

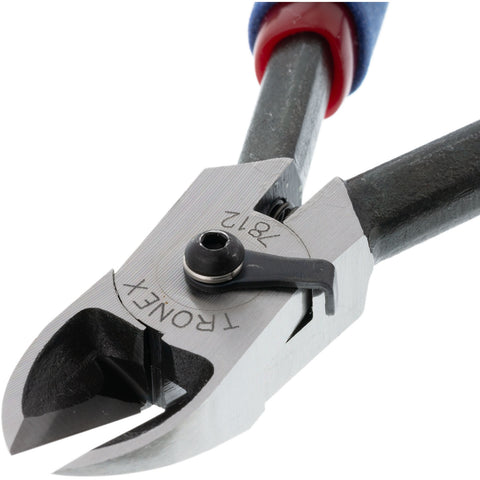

7812: These Heavy Duty Oval Head Cutters are forged of carbon steel, this cutter has strength is the head and joint areas needed to cut heavier duty wire or cable. A jaw restraining device is attached to ensure spring retention. Overall Length: 6.2” (157mm) - Tip Length: .78” (20mm)

Cutting Capacity (rating is for soft copper wire)

Model Cut Inch MM AWG
7812 Flush .010”-.080” 0.3-2mm 29-12
  • 7070: Long Tip Cutters
  • 7223: Taper Head, Relieved, Razor Flush Edges
  • 7513: Oval Head, Large, Razor Flush Edges
  • 7812: XL Heavy Duty Oval Head Cutters

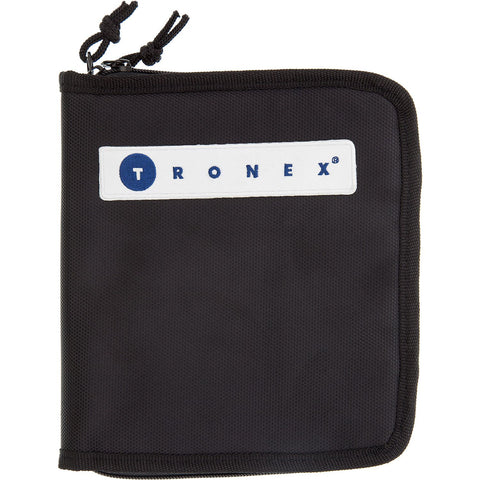

  • BYOK-T: Zipper Case
SKU: TX7KIT-C
UPC: 196943981398
Brand: Tronex
MPN: TX7KIT-C
Made In: United States
