Five Models | 270Wh to 1088Wh | IP65-Rated Closed-Case Operation | Desert Tan, Rescue Orange, or Midnight Black
The DeployNet™ is a rugged, self-contained internet and power solution designed for rapid deployment anywhere reliable connectivity is needed.
Built inside a durable IP65-rated protective hard case, DeployNet™ combines your Starlink Mini, integrated battery power, charging system, and auxiliary power connections into one compact, field-ready package.
Simply position the DeployNet™ where the Starlink Mini has a clear view of the sky, press the externally mounted illuminated power switch, and connect.
There is no need to open the case during normal operation.
The external power switch allows the case to remain closed and latched while operating, keeping the Starlink Mini, batteries, wiring, and other internal components protected from the environment while maintaining the case's IP65-rated protection.
No loose wires. No external batteries. No complicated setup. No need to expose the internal electronics to the environment.

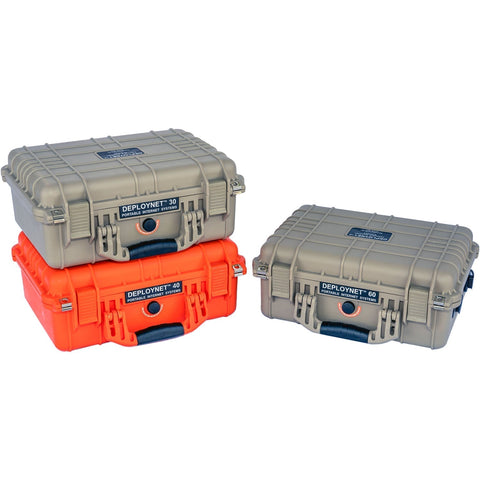

DeployNet™ is available in five models, ranging from the airline-travel-oriented DeployNet™ Air to the high-capacity, advanced power-management DeployNet™ Elite.
DeployNet™ can also be operated while connected to its charger, allowing continuous operation during extended deployments.
Important: A Starlink Mini antenna and active Starlink service subscription are required for operation and are not included with the DeployNet™ system.
Whether you're supporting emergency operations, search and rescue, working in remote locations, traveling off-grid, or preparing for communications outages, DeployNet™ provides reliable connectivity in a compact, self-contained, field-ready system.
Choose Your DeployNet™
DeployNet™ Air — Designed with Airline Travel in Mind
The DeployNet™ Air is specifically designed for users who need a portable, self-contained DeployNet™ system while traveling.
Rather than using one large-capacity battery, DeployNet™ Air incorporates three separate internally installed 90Wh batteries, providing approximately 270Wh of total onboard battery capacity while keeping each individual battery at 90Wh.
The three batteries are installed internally as part of the DeployNet™ Air system and are not removable during normal use.
Battery Configuration: 3 × 90Wh internally installed batteries
Total Battery Capacity: Approximately 270Wh
Typical Runtime: Approximately 12 hours
DeployNet™ Air is particularly well suited for:
- Airline travel
- Fly-away emergency response teams
- Search and rescue deployments
- Public safety mutual-aid deployments
- Business travel
- Remote field operations
- Camping and recreational travel
Like every DeployNet™, the Air operates with the case closed and latched. Simply position the system, press the external illuminated power switch, and connect.
Airline Travel Notice: Lithium battery transportation requirements can vary by airline, aircraft, destination, and jurisdiction. Always confirm current requirements with your airline before traveling with DeployNet™ Air.
DeployNet™ 30 — Standard Runtime
A great balance of portability, battery capacity, and runtime for typical field deployments, travel, and backup internet.
Battery Capacity: 30Ah / 408Wh
Typical Runtime: Approximately 14 hours
Approximate Weight: 18 lbs
Ideal for:
- Emergency response
- Search and rescue
- Remote work
- Travel
- Camping
- Backup internet
DeployNet™ 40 — Extended Runtime
Provides significantly longer operation between charges while maintaining a compact, portable footprint.
Battery Capacity: 40Ah / 544Wh
Typical Runtime: Approximately 24 hours
Approximate Weight: 19 lbs
Ideal for:
- Full-day operations
- Command posts
- Remote job sites
- Emergency communications
- Extended off-grid use

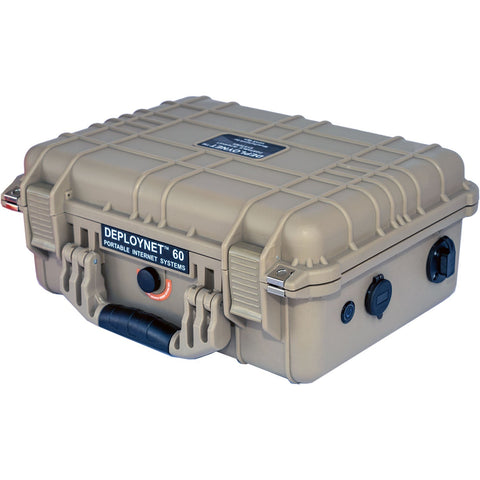

DeployNet™ 60 — Long-Duration Runtime
Designed for extended missions, remote work sites, and operations where maximum runtime between charges is important.
Battery Capacity: 60Ah / 816Wh
Typical Runtime: Approximately 36 hours
Approximate Weight: 23 lbs
This configuration provides approximately:
- 100% more runtime than DeployNet™ 30
- 50% more runtime than DeployNet™ 40
Ideal for:
- Multi-day operations
- Search and rescue
- Disaster response
- Remote command posts
- Extended off-grid deployments
DeployNet™ Elite — Maximum Capacity & Advanced Power Management
The DeployNet™ Elite is the flagship DeployNet™ configuration.
With an 80Ah / 1088Wh LiFePO4 battery system, Elite provides the greatest onboard energy capacity in the DeployNet™ family while adding advanced power monitoring and external connectivity options for demanding field operations.
Battery Capacity: 80Ah / 1088Wh
Approximate Weight: 29 lbs
In addition to its larger battery capacity, DeployNet™ Elite includes:
- External Anderson Powerpole® connection
- Integrated power management meter
- External Starlink power connection
- External illuminated system power switch
- USB-C fast charging
- Dual USB-A charging ports
- 12V accessory socket
- Digital battery monitoring
- Closed-case operation
External Anderson Powerpole® Connection
DeployNet™ Elite includes an externally accessible Anderson Powerpole® connection, providing additional flexibility for compatible external DC power equipment and accessories.
This expands the Elite beyond a dedicated internet system, providing additional options for integrating DeployNet™ into field power and communications setups.
Advanced Power Management Meter
An integrated power management meter provides more detailed information about the system's electrical performance and battery usage.
This gives the operator greater visibility into available power and system consumption during extended deployments.
External Starlink Connection
DeployNet™ Elite provides an external connection for the Starlink Mini power cable, giving you two ways to deploy your Starlink Mini.
Closed-Case Operation:
Operate the Starlink Mini from its normal protected position inside the closed DeployNet™ case.
External Starlink Operation:
Position the Starlink Mini outside the case and connect its power cable to the dedicated external Starlink port while continuing to use the DeployNet™ Elite's internal battery system for power.
This provides additional deployment flexibility when terrain, obstructions, vehicle positioning, structures, or environmental conditions make it advantageous to position the Starlink Mini away from the DeployNet™ case.
The DeployNet™ case itself can remain closed while powering the externally positioned Starlink Mini.
Elite Battery Capacity
Compared with the other DeployNet™ configurations, Elite provides:
- 33% more battery capacity than DeployNet™ 60
- 100% more battery capacity than DeployNet™ 40
- Nearly 3× the battery capacity of DeployNet™ 30
- More than 4× the battery capacity of DeployNet™ Air
DeployNet™ Elite is ideal for:
- Extended emergency operations
- Multi-day deployments
- Search and rescue
- Public safety operations
- Remote command posts
- Disaster response and recovery
- Off-grid communications
- Field power applications
- Deployments requiring flexible Starlink antenna placement
- Applications where maximum stored energy and power monitoring are priorities
DeployNet™ Model Comparison
| Model | Battery Configuration | Capacity | Typical Runtime | Best For |
|---|---|---|---|---|
| DeployNet™ Air | 3 × 90Wh Internal Batteries | ~270Wh | ~12 Hours | Airline Travel |
| DeployNet™ 30 | 30Ah LiFePO4 | 408Wh | ~14 Hours | Standard Deployments |
| DeployNet™ 40 | 40Ah LiFePO4 | 544Wh | ~24 Hours | Extended Deployments |
| DeployNet™ 60 | 60Ah LiFePO4 | 816Wh | ~36 Hours | Long-Duration Deployments |
| DeployNet™ Elite | 80Ah LiFePO4 | 1088Wh | See Runtime Information | Maximum Capacity & Power Management |

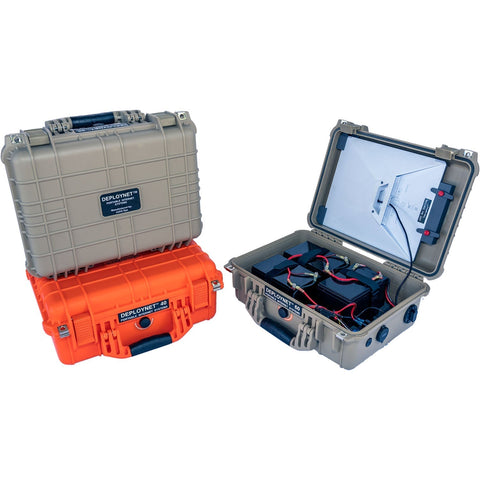

Closed-Case IP65 Protection
One of the most important features of DeployNet™ is that the protective case does not need to be opened during normal operation.
The illuminated system power switch is mounted externally, allowing DeployNet™ to be turned on and off while the case remains completely closed and latched.
This keeps the internal:
- Starlink Mini
- Batteries
- Electrical connections
- Wiring
- Power electronics
protected from dust, rain, and the surrounding environment.
The Apache 3800 protective case is IP65 rated when properly closed and latched, providing protection against dust ingress and water jets.
This makes DeployNet™ particularly well suited for emergency response, search and rescue, construction sites, outdoor events, remote operations, and other environments where exposed electronics and conventional Starlink installations may be vulnerable to weather.
Real-World Runtime Estimates
Battery runtime is often overstated in marketing. We prefer to provide real-world operating expectations you can use when planning a deployment.
Our estimated runtimes take into consideration:
- Actual device power draw rather than idle or best-case numbers
- Battery Management System (BMS) cutoff — batteries do not discharge completely to zero
- System losses from voltage conversion, wiring, and electronics
- Normal variations in Starlink Mini power consumption
Actual runtime will vary based on:
- Starlink Mini network activity
- Ambient temperature
- Battery condition
- Auxiliary equipment being powered
- Charging conditions
- Other environmental and operating factors
Key Features
- Closed-case operation maintains IP65-rated protection
- Externally mounted illuminated power switch
- No need to open the case during normal operation
- One-switch operation — press and connect
- Self-contained portable internet and power system
- Five models for different deployment requirements
- Three case colors: Desert Tan, Rescue Orange, and Midnight Black
- DeployNet™ Air uses three internally installed 90Wh batteries
- Integrated battery power
- Can be used while charging
- Built-in USB and 12V charging ports
- Digital voltmeter for battery monitoring
- Rugged protective hard case
- Stainless steel hardware throughout
- Clean, serviceable internal layout
- No external battery required
- Designed for transport and rapid field deployment
Additional DeployNet™ Elite Features
- 80Ah / 1088Wh LiFePO4 battery system
- External Anderson Powerpole® connection
- Integrated power management meter
- Dedicated external Starlink power connection
- Ability to power the Starlink Mini inside or outside the case
- Enhanced field power flexibility
Power & Charging
DeployNet™ includes a 110V battery charger, allowing convenient recharging from:
- Standard household outlets
- Generators
- Vehicle inverters
- Portable power stations
DeployNet™ is designed to operate normally while connected to its charger.
This makes it particularly well suited for:
- Command posts
- Remote job sites
- Emergency response
- Search and rescue
- Disaster recovery
- Extended deployments
- Backup internet during outages
When external AC power is available, DeployNet™ can remain connected to its charger while operating.
Integrated Power Ports
DeployNet™ includes a multi-function waterproof power panel that allows you to charge or power additional equipment directly from the DeployNet™ battery system.
Built-In Ports
- USB-C fast charging port
- Dual USB-A charging ports
- 12V accessory socket
- Integrated power switch
- Digital voltmeter
- Waterproof aluminum housing
This allows DeployNet™ to function as both an internet system and portable auxiliary power source.
DeployNet™ Elite adds an external Anderson Powerpole® connection, advanced power management meter, and dedicated external Starlink connection for additional field flexibility.
Case Color Options
DeployNet™ is available in three rugged case colors, allowing you to select the configuration best suited to your operating environment.
Desert Tan
A lower-profile earth-tone finish well suited for remote field operations, professional applications, outdoor environments, construction, utilities, public safety, and tactical applications.
Desert Tan provides a subdued appearance while also absorbing less solar energy than the Midnight Black case during direct daytime sun exposure.

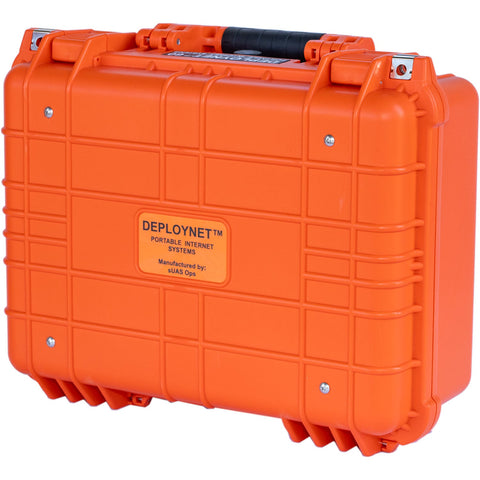

Rescue Orange
A highly visible finish designed for applications where quickly identifying critical communications equipment is important.
Rescue Orange is particularly well suited for:
- Search and rescue
- Fire and emergency response
- Disaster response
- Public safety
- Mutual-aid deployments
- Emergency communications
- Field equipment where high visibility is desirable
The bright orange case can also make DeployNet™ easier to locate among other equipment or in outdoor environments.

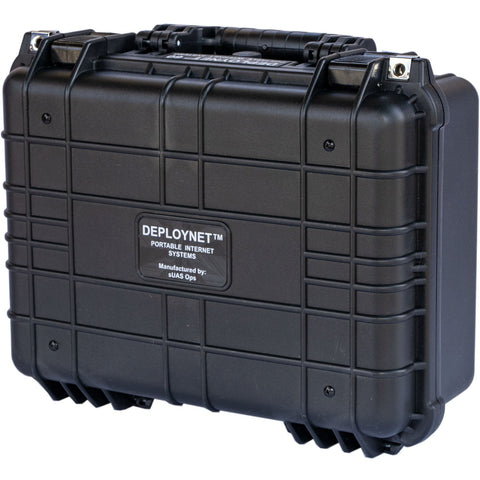

Midnight Black
A clean, discreet, professional appearance suitable for commercial, public safety, mobile communications, remote operations, and other applications where a traditional black equipment case is preferred.
⚠ Important Heat Warning — Midnight Black
Midnight Black absorbs more solar energy than the lighter Desert Tan and Rescue Orange cases. When exposed to direct sunlight, particularly during hot daytime conditions, the exterior and interior of the Midnight Black case may become significantly hotter.
Because DeployNet™ is designed for closed-case operation, heat generated by the Starlink Mini, batteries, and power electronics is combined with heat absorbed from the sun. Under high ambient temperatures and prolonged direct sunlight, this can potentially result in excessive internal temperatures.
Use additional caution when operating a Midnight Black DeployNet™ in direct sunlight or high-temperature daytime environments.
- Position the DeployNet™ in shade while maintaining an unobstructed view of the sky for the Starlink Mini whenever practical.
- Avoid placing the case on hot pavement, vehicle roofs, metal surfaces, or other heat-absorbing surfaces.
- Do not leave the unit unnecessarily exposed to prolonged direct sunlight during extreme heat.
- Periodically check the case and system during extended hot-weather operation.
- If the case or system becomes excessively hot, relocate it to a cooler or shaded location.
- For applications involving frequent prolonged operation in direct daytime sunlight, Desert Tan or Rescue Orange may be preferable to Midnight Black.
All DeployNet™ case colors can become hot when exposed to direct sunlight. Midnight Black, however, has the greatest potential for solar heat absorption and should be deployed accordingly.
Case Specifications
DeployNet™ is built inside a rugged:
Apache 3800 IP65-Rated Protective Case
External Dimensions
16.9" L × 14.7" W × 6.7" H
Internal Dimensions
15.2" L × 12.2" W × 5.7" H
Construction Features
- Impact-resistant polymer case
- Weather-resistant gasket seal
- Dual latches
- Pressure equalization valve
- Molded carry handle
- Stainless steel mounting hardware
Battery Specifications
Battery Chemistry:
LiFePO4 (Lithium Iron Phosphate) on applicable DeployNet™ models
System Voltage:
12V
Available Battery Configurations
DeployNet™ Air
3 × internally installed 90Wh batteries
Approximately 270Wh total capacity
DeployNet™ 30
30Ah / 408Wh
DeployNet™ 40
40Ah / 544Wh
DeployNet™ 60
60Ah / 816Wh
DeployNet™ Elite
80Ah / 1088Wh
LiFePO4 Battery Life
Typical Cycle Life:
Approximately 2,000–4,000 charge cycles
Potential Service Life:
Up to 10 years under normal use and storage conditions.
Approximate System Weight
Approximate system weight includes the DeployNet™ system, internal battery system, Starlink Mini antenna, 110V battery charger, installed hardware, and wiring.
- DeployNet™ 30 — 18 lbs
- DeployNet™ 40 — 19 lbs
- DeployNet™ 60 — 23 lbs
- DeployNet™ Elite — 29 lbs
Typical Use Cases
DeployNet™ is designed for applications where dependable internet access may be required beyond traditional infrastructure.
- Emergency response
- Search and rescue
- Public safety
- Mobile command posts
- Disaster response and recovery
- Remote job sites
- Construction and utilities
- Farming and ranching
- Camping and RV travel
- Backup internet during outages
- Off-grid operations
- Remote events
- Field communications
- Mutual-aid deployments
What's Included
- DeployNet™ portable internet and power system
- Internal battery system corresponding to the selected model
- 110V battery charger
- Integrated USB-C, USB-A, and 12V auxiliary power ports
- External illuminated power switch
- Digital battery voltmeter
- Installed stainless steel hardware
- Internal wiring and power system
- Fully assembled system ready for deployment
DeployNet™ Elite Also Includes
- External Anderson Powerpole® connection
- Integrated power management meter
- Dedicated external Starlink power connection
Starlink Mini antenna is not included.
Starlink Mini Required
DeployNet™ is designed specifically to power, protect, transport, and simplify deployment of your existing Starlink Mini.
A Starlink Mini antenna and active Starlink service subscription are required for internet connectivity and are not included with the DeployNet™ system.
Shipping Notice — Lithium Battery Product
Important Shipping Information
DeployNet™ models contain lithium batteries that may exceed battery-capacity limits applicable to standard air shipment.
Due to regulations and carrier restrictions governing transportation of large lithium batteries, certain DeployNet™ configurations cannot be shipped using standard air services and must be transported using an approved ground or surface transportation method.
As a result, expedited air shipping may not be available.
Ground shipping may require additional transit time, particularly for destinations outside the continental United States.
DeployNet™ Air uses a different battery configuration consisting of three individual internally installed 90Wh batteries. Please contact us if you have questions regarding shipping or traveling with DeployNet™ Air.
We appreciate your understanding as we comply with applicable hazardous-material and transportation safety requirements.
Important Requirement
A Starlink Mini antenna and active Starlink service subscription are required for operation and are not included with the DeployNet™ system.
DeployNet™ is designed to power, protect, transport, and simplify deployment of your existing Starlink Mini hardware.
