Introductory Price - $899.95

Click here to visit the DEPLOYVIEW™ FAQ for answers to common questions.

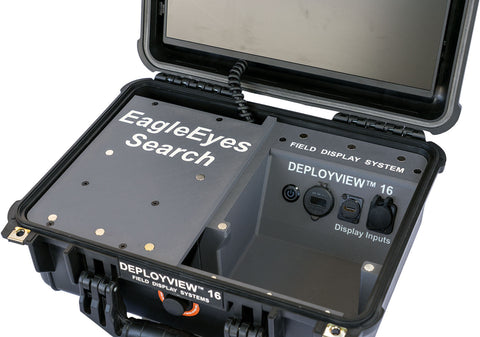

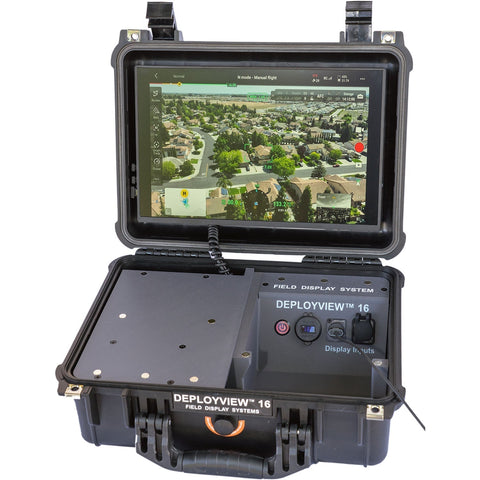

DeployView™ 16 Field Display System

Self-Contained Visual Monitoring for Field Operations

The DeployView™ 16 Field Display System is a rugged, self-contained visual monitoring system designed for drone operations, incident command, search and rescue, emergency response, training, and remote field deployment.

Every DeployView™ 16 combines a high-brightness 16-inch daylight-readable display, internal LiFePO₄ battery power, USB charging, and multiple video input options inside a durable protective case.

Everything needed for operation is contained within one portable system. There are no external monitors to assemble, no generator required, and no complicated setup. Simply open the case, connect your video source, and you are ready to deploy.

Whether you are supporting a drone team, operating an incident command post, conducting a search and rescue mission, or working in a remote environment, the DeployView™ 16 provides a dependable visual display platform built for real-world field use.

Choose the DeployView™ 16 Model That Fits Your Mission

Select your preferred DeployView™ 16 model first, then choose your case color.

DeployView™ 16 Standard

The DeployView™ 16 Standard is the core configuration and provides dependable all-day field performance in a simple, self-contained package.

Battery System

256Wh — 20Ah, 12.8V LiFePO₄ battery

Typical Runtime: Approximately 15–16 hours

Power Monitoring: Real-time battery voltage display

Best For

• Everyday field operations
• Drone teams
• Public safety agencies
• Incident command
• Training
• General-purpose visual monitoring

The DeployView™ 16 Standard is ideal for operators who want a rugged, reliable field display without the need for advanced power monitoring.

DeployView™ 16 Plus

The DeployView™ 16 Plus includes everything found in the DeployView™ 16 Standard and adds an advanced shunt-controlled power monitoring system.

Battery System: 256Wh — 20Ah, 12.8V LiFePO₄ battery

Typical Runtime: Approximately 15–16 hours

Advanced Power Monitoring: The integrated shunt-controlled meter provides real-time information including:

• Battery voltage
• Current draw
• Power consumption in watts
• Amp-hours used
• Remaining battery capacity
• Estimated remaining runtime

Best For

• Extended field deployments
• Operators who want detailed power information
• Incident command
• Public safety
• Search and rescue
• Remote operations

The DeployView™ 16 Plus is designed for users who want greater awareness of battery status and system power consumption throughout an operation.

DeployView™ 16 Air

The DeployView™ 16 Air is designed for professionals who frequently travel by commercial airline and need a lower-capacity battery configuration while retaining the rugged design and functionality of the standard system.

Battery System: 179Wh total — 2 × 7Ah, 12.8V LiFePO₄ batteries

The batteries are internally installed and are not removable during normal operation.

Typical Runtime: Approximately 10–12 hours

Power Monitoring: Real-time battery voltage display

Best For

• Traveling instructors
• Consultants
• Public safety personnel who frequently fly
• Training deployments
• Remote operations requiring easier air transport

The DeployView™ 16 Air provides a more travel-friendly battery configuration while still delivering substantial field runtime.

DeployView™ 16 Air Plus

The DeployView™ 16 Air Plus combines the battery configuration of the DeployView™ 16 Air with the advanced shunt-controlled power monitoring system found in the DeployView™ 16 Plus.

Battery System: 179Wh total — 2 × 7Ah, 12.8V LiFePO₄ batteries

The batteries are internally installed and are not removable during normal operation.

Typical Runtime: Approximately 10–12 hours

Advanced Power Monitoring: The integrated shunt-controlled meter provides:

• Battery voltage
• Current draw
• Power consumption in watts
• Amp-hours used
• Remaining battery capacity
• Estimated remaining runtime

Best For

• Traveling professionals
• Instructors
• Consultants
• Public safety personnel
• Operators who need detailed power monitoring in a travel-oriented configuration

The DeployView™ 16 Air Plus provides the portability advantages of the Air configuration while retaining full power-management visibility.

DeployView™ 16 Max

The DeployView™ 16 Max is designed for long-duration missions and remote operations where maximum battery capacity and external connectivity are important.

It includes all of the capabilities of the DeployView™ 16 Plus while doubling the internal battery capacity.

Battery System: 512Wh total — 2 × 20Ah, 12.8V LiFePO₄ batteries

Typical Runtime: Approximately 30+ hours

Advanced Power Monitoring: The integrated shunt-controlled meter provides:

• Battery voltage
• Current draw
• Power consumption in watts
• Amp-hours used
• Remaining battery capacity
• Estimated remaining runtime

Starlink Mini Power Port

The DeployView™ 16 Max includes a dedicated external power port designed for powering a Starlink Mini directly from the system.

This allows the DeployView™ 16 Max to support both visual monitoring and remote connectivity from one self-contained field platform.

Best For

• Long-duration missions
• Remote command posts
• Search and rescue
• Emergency management
• Disaster response
• Wildland fire operations
• Extended drone operations
• Remote Starlink deployments

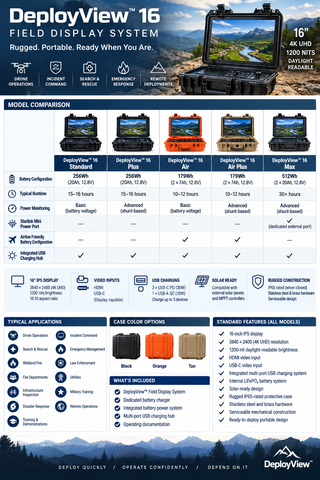

Standard Features on Every DeployView™ 16

Every DeployView™ 16 model includes:

• 16-inch IPS display
• 3840 × 2400 resolution
• 4K UHD display
• 1200-nit daylight-readable brightness
• 16:10 aspect ratio
• 60Hz refresh rate
• 178° viewing angle
• HDMI video input
• USB-C video input
• Integrated multi-port USB charging system
• Internal LiFePO₄ battery power
• Solar-ready charging capability
• Rugged protective case
• IP65 rating when closed
• Stainless steel hardware
• Brass threaded inserts
• Serviceable mechanical construction
• Dedicated battery charger
• Ready-to-deploy portable design

Display Specifications

• Screen Size: 16 inches
• Resolution: 3840 × 2400
• Display Type: IPS
• Brightness: 1200 nits
• Aspect Ratio: 16:10
• Refresh Rate: 60Hz
• Viewing Angle: 178°
• Video Inputs: HDMI & USB-C with video capability
• Typical Display Power Consumption: Approximately 15 watts

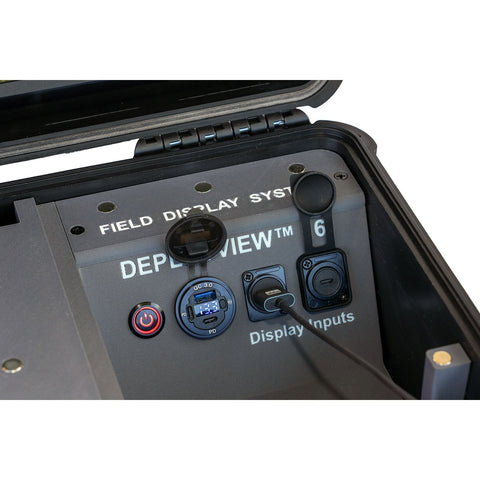

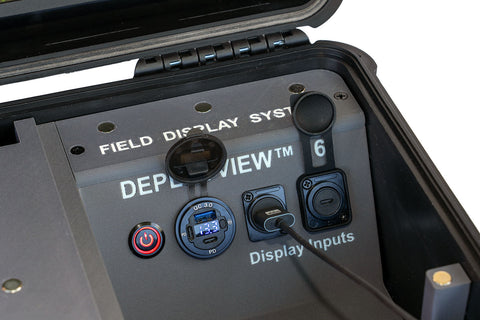

Integrated USB Charging System

Every DeployView™ 16 includes an integrated multi-port USB charging system for powering mobile devices and field electronics.

Charging Capabilities

• 2 × USB-C Power Delivery ports — up to 30W each
• 1 × USB-A Quick Charge port — up to 18W
• Charge up to three devices simultaneously
• Integrated power switch
• Battery monitoring display

This allows operators to charge phones, tablets, controllers, and other compatible devices directly from the DeployView™ 16 during field operations.

Solar Ready

Every DeployView™ 16 is designed to support off-grid charging using compatible external solar panels and MPPT charge controllers.

Solar charging can help extend field deployments when conventional AC power is unavailable.

Actual charging performance will vary based on:

• Solar panel output
• Sunlight conditions
• MPPT controller
• Battery state of charge
• Connected system loads

Rugged Construction

Every DeployView™ 16 is designed for demanding field environments.

The protective case is IP65 rated when closed, helping protect the system from dust and water exposure during transportation and storage.

When the case is open and the system is operating, it is not sealed and should be protected from direct rain and excessive moisture.

Construction features include:

• Stainless steel hardware
• Brass threaded inserts
• Mechanical fasteners
• Serviceable internal components
• Rugged field-oriented construction

Rather than relying heavily on adhesives, glue, or snap-in components, the DeployView™ 16 is assembled using mechanical fasteners whenever practical. This allows components to be accessed, serviced, and replaced if necessary.

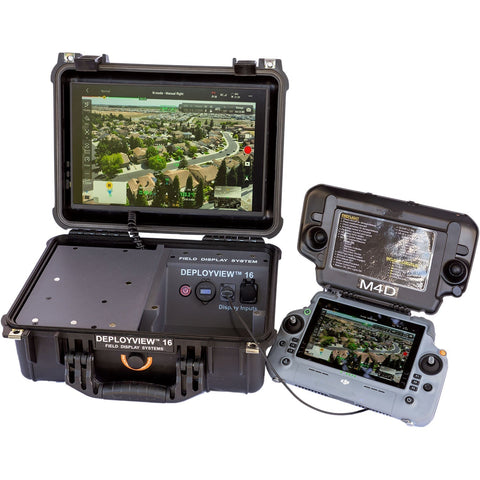

Compatible Devices

The DeployView™ 16 supports a wide range of HDMI and USB-C video sources, including:

• Drone controllers
• Smartphones
• Tablets
• Laptop computers
• Field computers
• Video receivers
• Incident command systems
• Remote monitoring equipment
• Compatible cameras and video systems

Typical Applications

The DeployView™ 16 is designed for:

• Drone Operations
• Incident Command
• Search and Rescue
• Public Safety
• Emergency Management
• Wildland Fire Operations
• Law Enforcement
• Fire Departments
• Utilities
• Infrastructure Inspection
• Military and Government Operations
• Disaster Response
• Remote Field Operations
• Training and Demonstrations

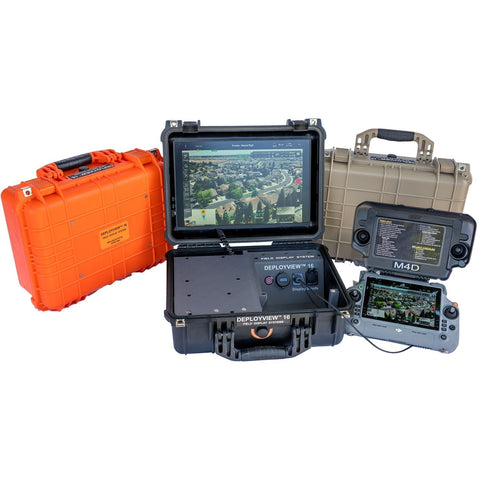

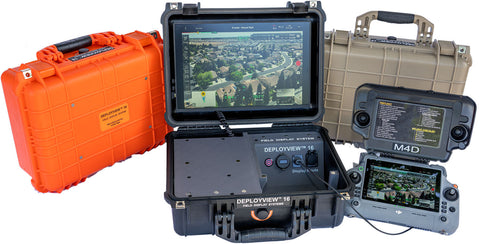

Available Case Colors

After selecting your preferred DeployView™ 16 model, choose the case color that best fits your mission.

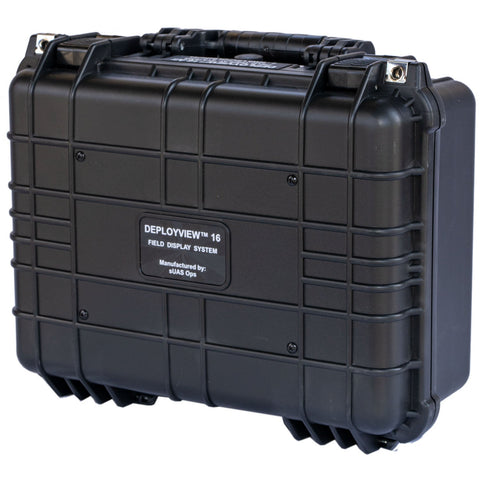

• Midnight Black™: A professional, low-visibility appearance ideal for public safety, utilities, commercial operations, command posts, and general field use.

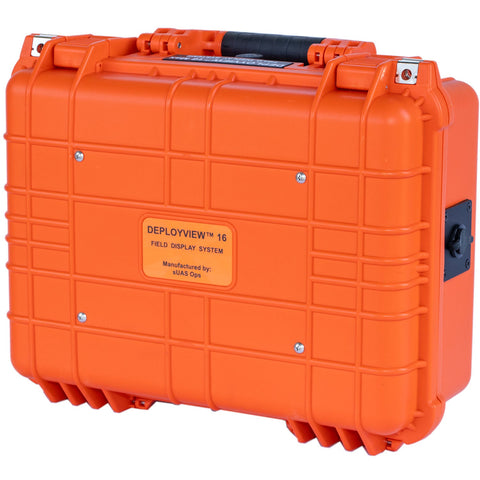

• Rescue Orange™: A high-visibility finish designed to stand out in demanding field environments and make equipment easier to locate.
• Desert Tan™: A neutral tactical color well suited for outdoor, remote, utility, military, and field operations.

What’s Included

Every DeployView™ 16 Field Display System includes:

• DeployView™ 16 Field Display System
• Internal LiFePO₄ battery system appropriate to the selected model
• HDMI video input
• USB-C video input
• Integrated multi-port USB charging system
• Battery monitoring system appropriate to the selected model
• Dedicated battery charger
• Rugged protective case
• Operating documentation

Built for the Mission

Every DeployView™ 16 is designed around a simple operating philosophy:

Deploy quickly. Operate confidently. Depend on it when the mission matters.

From everyday drone operations to long-duration remote deployments, there is a DeployView™ 16 configuration designed to match your operational requirements.

Select your DeployView™ 16 model above, then choose Midnight Black™, Rescue Orange™, or Desert Tan™ as your case color.

Click here to visit the DEPLOYVIEW™ FAQ for answers to common questions.

Shipping Notice – Lithium Battery Product

Important Shipping Information:
The DeployView™ and DeployNet™ contain high-capacity lithium batteries that exceed the battery capacity limits for standard air shipment. Due to FAA regulations and carrier restrictions governing the transportation of large lithium batteries, these products cannot be shipped by air and must be transported via ground transportation (UPS Ground or other approved surface carrier).

As a result, expedited and air shipping options are not available for these products. Ground shipping may require additional transit time, particularly for destinations outside the continental United States.

We appreciate your understanding as we comply with all applicable hazardous materials and transportation safety regulations.
