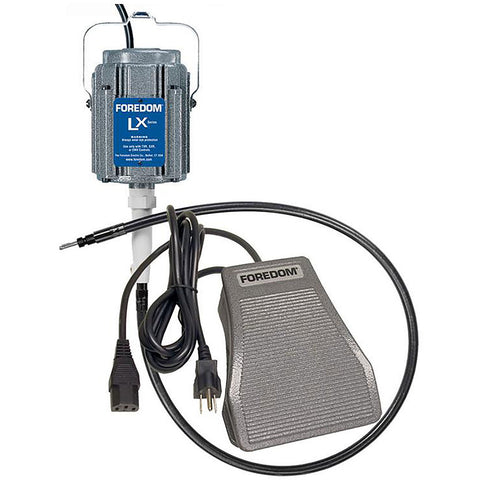

1/10 hp LX Motor with Standard Shaft & Sheath and SXR-1 Cast Iron Foot Pedal Speed Control, 115v
M.LX Motor: These permanent magnet motors are specifically designed for high torque/low speed applications, offering more power for jobs like stone setting, wax modeling, and pearl drilling.
M.LX ball bearing motors feature full power and torque from start up and throughout the entire speed range up to 5,000 rpm. They are ideal for use with Foredom drill presses. They also are well matched with the H.15 and H.15D Hammer Handpieces. It comes equipped with a motor bale for hanging, and Foredom's standard 39″ long key tip shafting for connecting to any of Foredom’s key tip handpieces.
Foredom’s permanent magnet motors require the use of a TXR-1, SXR-1, or EMX-1 speed control. These controls have the same housing as other Foredom speed controls but they convert AC current from an electrical outlet to DC current required by Series LX motors. These controls have a different style plug that is made to fit the motor’s shielded-type plug. Damage will result if the motor is connected to any other speed control.

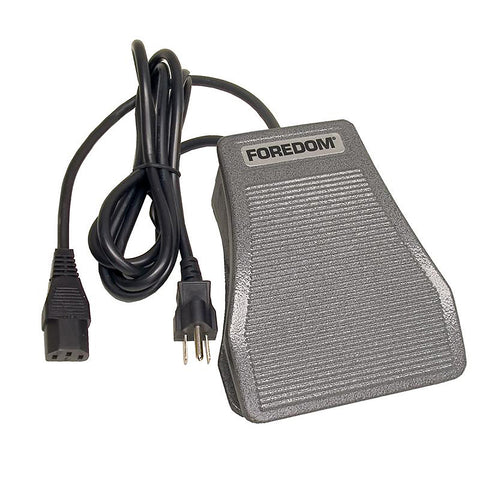

C.SXR-1 Speed Control has durable, solid state electronics as the C.TXR-1. The ergonomics allow precise and reliable speed control with your foot. The C.SXR-1 has special electronics that converts AC current from an electrical outlet to DC current- the type required by the motor. It also has a special plug that fits the motor’s shielded plug. 6-3/4″ long, 4″ wide, 2-3/8″ high, ship wt-6 lbs./2.7 kg.
SHIPPING METHOD: This item must ship via UPS. During the checkout process you may be offered Priority Mail but this item must ship via UPS. If you select Priority Mail, it will only slow down the process as we will have to change the shipping method after the fact and charge the difference. We have learned the hard way to not ship fragile or high value items via Priority Mail.,
Check Out The Foredom Tools Catalog
Foredom Kits and Their Components
|Made In:||United States|
Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
